********************موضوع اليوم*************************
مجموعه متنوعه من فلاشات MTK النادره مسحوبة على العملاق CM2
*****************************************************************
***********************
نبدئ على بركة الله
****************************
***********************************
طبعا الفلاشات كلها نظيفة ومجربة وهيا من رفعي
وايضا الفلاشات بصيغة Scatter File
ويمكن التفليش بالـ Sp Flash Tools
او البكسات الأخرى
**************************************************************
-----------------------------------ملاحظة:-------------------------------------
الفلاشات كلها محميةبباسورد فك الضغط
[gem-flash]
-------------------------------------------------------------------------------------
الفلاشة رقم (1)
ZTE Blade Q Maxi
MT6572__ZTE__Blade_Q_Maxi__P172D10__4.2.2__P172D10V1.0.0B03
(1)
انفو للفلاشة على الميراكل
كود:
Connected to Phone.
CPU: MT6572 SW:0000 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x00E7000000
Flash Type: EMMC
INT/EXT RAM Size: 0x0+0x0
Reading infr(EMMC)...
id:BladeQMaxi_ZTEV1.0.0B03
version:4.2.2
model:Blade Q Maxi
brand:ZTE
manufacturer:ZTE
PRELOADER BaseAddr:0x0 Size:0x600000
MBR BaseAddr:0x600000 Size:0x80000
EBR1 BaseAddr:0x680000 Size:0x80000
PRO_INFO BaseAddr:0x700000 Size:0x300000
NVRAM BaseAddr:0xA00000 Size:0x500000
PROTECT_F BaseAddr:0xF00000 Size:0xA00000
PROTECT_S BaseAddr:0x1900000 Size:0xA00000
SECCFG BaseAddr:0x2300000 Size:0x20000
UBOOT BaseAddr:0x2320000 Size:0x60000
BOOTIMG BaseAddr:0x2380000 Size:0x600000
RECOVERY BaseAddr:0x2980000 Size:0x600000
SEC_RO BaseAddr:0x2F80000 Size:0x40000
MISC BaseAddr:0x2FC0000 Size:0x80000
LOGO BaseAddr:0x3040000 Size:0x300000
EXPDB BaseAddr:0x3340000 Size:0xA00000
ANDROID BaseAddr:0x3D40000 Size:0x38400000
CACHE BaseAddr:0x3C140000 Size:0x17800000
USRDATA BaseAddr:0x53940000 Size:0x927C0000
BMTPOOL BaseAddr:0xFFFF0000 Size:0x1500000
BaseAddr:0x0 Size:0x0
>>Done.
(2) انفو للفلاشة على
Chinese Miracle-2
كود:
BB_CPU_PID : 6572
BB_CPU_NME : [MediaTek] MT6572_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with SPRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1552.01.01
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x88
NAND Flash : NOT INSTALLED
eMMC Flash : 90014A4834473164048600A3E0241195
Initialize Memory ...
DRAM already initialized by Preloader
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x90 , OEM : 014A
[eMMC] : FLASH_INF : [HYNIX] , d1G4
[eMMC] : FLASH_CID : 90014A4834473164048600A3E0241195
[eMMC] : FLASH_BRT : 0x00200000 , 0x00200000 , 0x00200000
[eMMC] : FLASH_LEN : 0x00000000E7000000
[eMMC] : FLASH_UCP : 3696 MiB [eMMC 4 GiB]
DEV RID : BC5B5AFB4282C13B44A90F50350CD3E3
INT RAM : 0x00020000
EXT RAM : 0x40000000
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
[AP] : Initial info read Ok!
Brand : ZTE
ProdName : P172D10
ProdModel : Blade Q Maxi
Device : P172D10
AndroidVer: 4.2.2
MTKxCPU : MT6572
MTKxPRJ : P172D10V1.0.0B03
Done!
رابط التحميل الفلاشة
الفلاشة رقم (2)
yassun model: sk2
MT6572__SK2__XENIX__SK2__4.2.2__ALPS.JB3.MP.V1.2
(1) انفو للفلاشة على الميراكل
كود:
CPU: MT6572 SW:0000 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x00E9000000
Flash Type: EMMC
INT/EXT RAM Size: 0x0+0x0
Reading infr(EMMC)...
id:ALPS.JB3.MP.V1.2
version:4.2.2
model:XENIX
brand:SK2
manufacturer:XENIX
PRELOADER BaseAddr:0x0 Size:0x600000
MBR BaseAddr:0x600000 Size:0x80000
EBR1 BaseAddr:0x680000 Size:0x80000
PRO_INFO BaseAddr:0x700000 Size:0x300000
NVRAM BaseAddr:0xA00000 Size:0x500000
PROTECT_F BaseAddr:0xF00000 Size:0xA00000
PROTECT_S BaseAddr:0x1900000 Size:0xA00000
SECCFG BaseAddr:0x2300000 Size:0x20000
UBOOT BaseAddr:0x2320000 Size:0x60000
BOOTIMG BaseAddr:0x2380000 Size:0x600000
RECOVERY BaseAddr:0x2980000 Size:0x600000
SEC_RO BaseAddr:0x2F80000 Size:0x40000
MISC BaseAddr:0x2FC0000 Size:0x80000
LOGO BaseAddr:0x3040000 Size:0x300000
EXPDB BaseAddr:0x3340000 Size:0xA00000
ANDROID BaseAddr:0x3D40000 Size:0x28A00000
CACHE BaseAddr:0x2C740000 Size:0x17800000
USRDATA BaseAddr:0x43F40000 Size:0x52C00000
FAT BaseAddr:0x96B40000 Size:0x51440000
BMTPOOL BaseAddr:0xFFFF0000 Size:0x0
>>Done.
(2) انفو للفلاشة على
Chinese Miracle-2
كود:
BB_CPU_PID : 6572
BB_CPU_NME : [MediaTek] MT6572_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with SPRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1552.01.01
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x88
NAND Flash : NOT INSTALLED
eMMC Flash : 1501004E35575A4D42012AAAC22BC09B
Initialize Memory ...
DRAM already initialized by Preloader
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x15 , OEM : 0100
[eMMC] : FLASH_INF : [SAMSUNG] , BMZW5
[eMMC] : FLASH_CID : 1501004E35575A4D42012AAAC22BC09B
[eMMC] : FLASH_BRT : 0x00200000 , 0x00200000 , 0x00080000
[eMMC] : FLASH_LEN : 0x00000000E9000000
[eMMC] : FLASH_UCP : 3728 MiB [eMMC 4 GiB]
DEV RID : 78867C522C7BC7886B5158539C2A0E27
INT RAM : 0x00020000
EXT RAM : 0x20000000
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
[AP] : Initial info read Ok!
Brand : SK2
ProdName : SK2
ProdModel : XENIX
Device : SK2
AndroidVer: 4.2.2
MTKxCPU : MT6572
MTKxPRJ : ALPS.JB3.MP.V1.2
Done!
رابط التحميل الفلاشة
الفلاشة رقم (3)

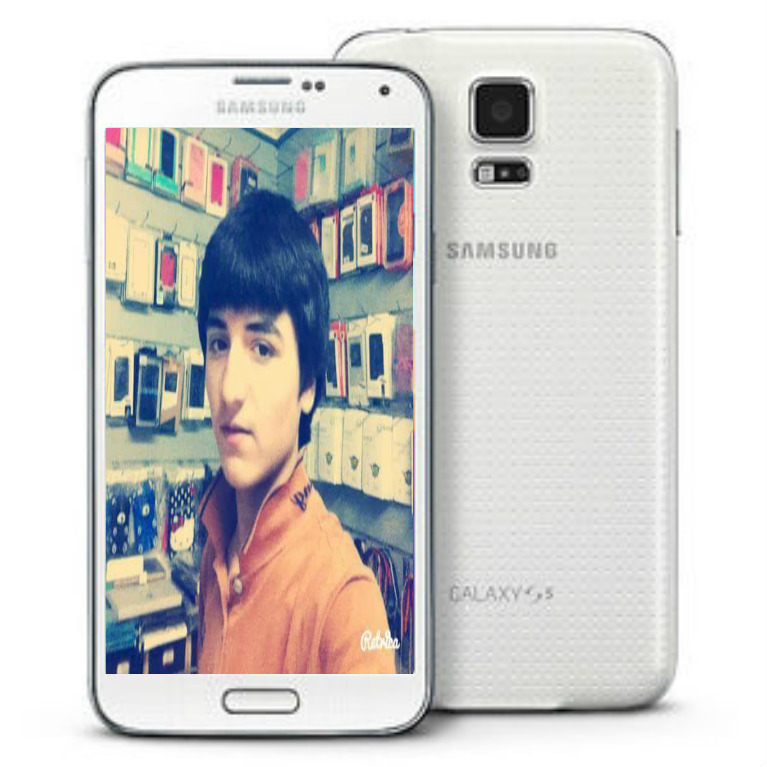

samsung sm-g900f
MT6571_NAND_alps__MT6571__benrui71_e_lca__4.2.2__ALPS.JB7.MP.V1.14
(1) انفو للفلاشة على الميراكل
كود:
Phone found
Sync...
Inital Boot Ok!
BB_CPU_PID : 6571
BB_CPU_NME : [MediaTek] MT6571_S00
BB_CPU_EXT : 0xCA00 , 0x8D00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with SPRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1552.01.01
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x8B
NAND Flash : 00AD00BC00900055005400AD00BC0000
eMMC Flash : NOT INSTALLED
Initialize Memory ...
DRAM already initialized by Preloader
NAND FlashIC initialized
[NAND] : FLASH_VEN : 0x008A , [HYNIX] H9DA4GH4JJAMCR_4EM
[NAND] : FLASH_DIE : 00AD 00BC 0090 0055 0054 00AD 00BC
[NAND] : FLASH_LEN : 0x20000000
[NAND] : FLASH_EXT : 0800/0040/01/NIM_Px-2
DEV RID : CB025EC4712898D46C018E370A088A94
INT RAM : 0x00020000
EXT RAM : 0x10000000
BOOT TYPE : NAND_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
[AP] : Initial info read Ok!
Brand : alps
ProdName : benrui71_e_lca
ProdModel : MT6571
Device : benrui71_e_lca
AndroidVer: 4.2.2
MTKxCPU : MT6571
MTKxPRJ : ALPS.JB7.MP.V1.14
Done!
(2)انفو ملف
Scatter File
كود:
#
# General Setting
#
####################################-=CHINESE MIRACLE=-#####################################################
- general: MTK_PLATFORM_CFG
info:
- config_version: V1.1.1
platform: MT6571
project: benrui71_e_lca
storage: NAND
boot_channel: NONE
block_size: 0x20000
############################################################################################################
#
# Layout Setting
#
############################################################################################################
- partition_index: SYS0
partition_name: PRELOADER
file_name: preloader_benrui71_e_lca.bin
is_download: true
type: SV5_BL_BIN
linear_start_addr: 0x0
physical_start_addr: 0x0
partition_size: 0x80000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: BOOTLOADERS
reserve: 0x00
- partition_index: SYS1
partition_name: PRO_INFO
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0x80000
physical_start_addr: 0x0
partition_size: 0x100000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS2
partition_name: NVRAM
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0x180000
physical_start_addr: 0x0
partition_size: 0x180000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: BINREGION
reserve: 0x00
- partition_index: SYS3
partition_name: PROTECT_F
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0x300000
physical_start_addr: 0x0
partition_size: 0x180000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS4
partition_name: SECCFG
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0x480000
physical_start_addr: 0x0
partition_size: 0x20000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS5
partition_name: UBOOT
file_name: lk.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x4a0000
physical_start_addr: 0x0
partition_size: 0x80000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS6
partition_name: BOOTIMG
file_name: boot.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x520000
physical_start_addr: 0x0
partition_size: 0x600000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS7
partition_name: RECOVERY
file_name: recovery.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0xb20000
physical_start_addr: 0x0
partition_size: 0x600000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS8
partition_name: SEC_RO
file_name: secro.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x1120000
physical_start_addr: 0x0
partition_size: 0x40000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS9
partition_name: MISC
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0x1160000
physical_start_addr: 0x0
partition_size: 0x60000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS10
partition_name: LOGO
file_name: logo.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x11c0000
physical_start_addr: 0x0
partition_size: 0x100000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS11
partition_name: EXPDB
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0x12c0000
physical_start_addr: 0x0
partition_size: 0x200000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS12
partition_name: FAT
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0x14c0000
physical_start_addr: 0x0
partition_size: 0x1400000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS13
partition_name: ANDROID
file_name: system.img
is_download: true
type: UBI_IMG
linear_start_addr: 0x28c0000
physical_start_addr: 0x0
partition_size: 0x13600000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS14
partition_name: CACHE
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0x15ec0000
physical_start_addr: 0x0
partition_size: 0x180000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS15
partition_name: USRDATA
file_name: usrdata.img
is_download: true
type: UBI_IMG
linear_start_addr: 0x16040000
physical_start_addr: 0x0
partition_size: 0x0
region: NONE
storage: HW_STORAGE_NAND
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS16
partition_name: BMTPOOL
file_name: NONE
is_download: false
type: NONE
linear_start_addr: 0xffff0050
physical_start_addr: 0x0
partition_size: 0xa00000
region: NONE
storage: HW_STORAGE_NAND
boundary_check: false
is_reserved: true
operation_type: RESERVED
reserve: 0x00
رابط التحميل الفلاشة
الفلاشة رقم (4)

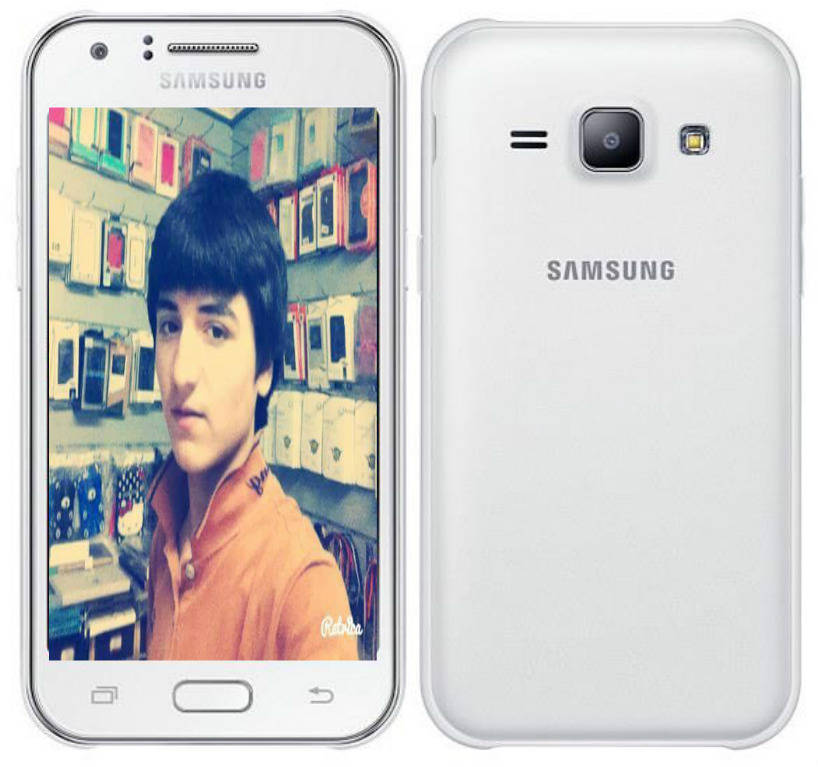

SAMSUNG SM-J100H
MT6572__samsung__SM-J100H__j13g__4.4.4__ALPS.JB3.MP.V1
(1) انفو للفلاشة على الميراكل
كود:
CPU: MT6572 SW:0000 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x00E7000000
Flash Type: EMMC
INT/EXT RAM Size: 0x0+0x0
Reading infr(EMMC)...
id:KTU84P.J100HXXU0AOB4
version:4.4.4
model:SM-J100H
brand:samsung
manufacturer:samsung
PRELOADER BaseAddr:0x0 Size:0x600000
MBR BaseAddr:0x600000 Size:0x80000
EBR1 BaseAddr:0x680000 Size:0x80000
PRO_INFO BaseAddr:0x700000 Size:0x300000
NVRAM BaseAddr:0xA00000 Size:0x500000
PROTECT_F BaseAddr:0xF00000 Size:0xA00000
PROTECT_S BaseAddr:0x1900000 Size:0xA00000
SECCFG BaseAddr:0x2300000 Size:0x20000
UBOOT BaseAddr:0x2320000 Size:0x60000
BOOTIMG BaseAddr:0x2380000 Size:0x600000
RECOVERY BaseAddr:0x2980000 Size:0x600000
SEC_RO BaseAddr:0x2F80000 Size:0x40000
MISC BaseAddr:0x2FC0000 Size:0x80000
LOGO BaseAddr:0x3040000 Size:0x300000
EXPDB BaseAddr:0x3340000 Size:0xA00000
ANDROID BaseAddr:0x3D40000 Size:0x28A00000
CACHE BaseAddr:0x2C740000 Size:0x17800000
USRDATA BaseAddr:0x43F40000 Size:0xA21C0000
BMTPOOL BaseAddr:0xFFFF0000 Size:0x1500000
BaseAddr:0x0 Size:0x0
>>Done.
(2) انفو للفلاشة على
Chinese Miracle-2
كود:
BB_CPU_PID : 6572
BB_CPU_NME : [MediaTek] MT6572_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with SPRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1552.01.01
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x88
NAND Flash : NOT INSTALLED
eMMC Flash : 90014A2058494E594811B45DEAC14F1B
Initialize Memory ...
DRAM already initialized by Preloader
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x90 , OEM : 014A
[eMMC] : FLASH_INF : [HYNIX] , HYNIX
[eMMC] : FLASH_CID : 90014A2058494E594811B45DEAC14F1B
[eMMC] : FLASH_BRT : 0x00200000 , 0x00200000 , 0x00200000
[eMMC] : FLASH_LEN : 0x00000000E7000000
[eMMC] : FLASH_UCP : 3696 MiB [eMMC 4 GiB]
DEV RID : FD71B01ACD0844F8FD6234A7D4E6F9A2
INT RAM : 0x00020000
EXT RAM : 0x20000000
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
[AP] : Initial info read Ok!
Brand : samsung
ProdName : j13gxx
ProdModel : SM-J100H
Device : j13g
AndroidVer: 4.4.4
MTKxCPU : MT6572
MTKxPRJ : ALPS.JB3.MP.V1
Done!
رابط التحميل الفلاشة
الفلاشة رقم (5)

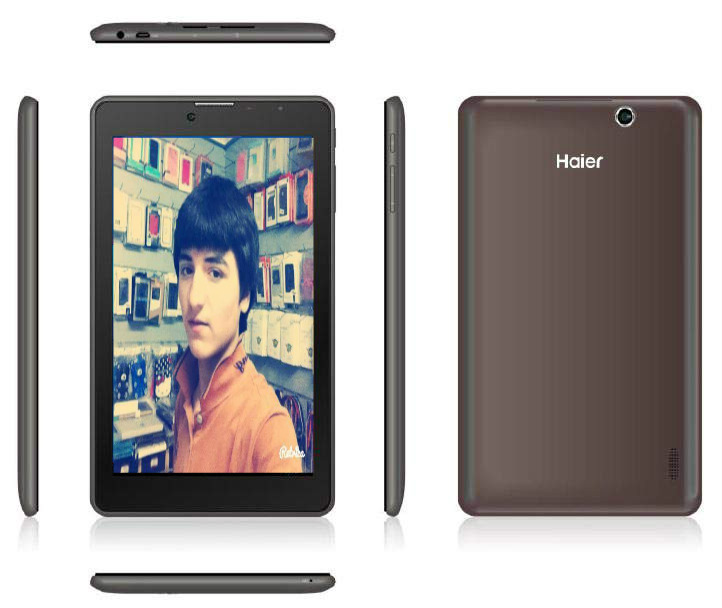

TABLETTE 7 3G HAIER D71
MT6582__Haier__D71__D71__4.4.2__ALPS.KK1.MP1.V2.10
(1) انفو للفلاشة على الميراكل
كود:
CPU: MT6582 SW:0001 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x01D2000000
Flash Type: EMMC
INT/EXT RAM Size: 0x0+0x0
Reading infr(EMMC)...
id:Haier.D71.GM.20140918.SV1.1
version:4.4.2
model:D71
brand:Haier
manufacturer:Haier
PRELOADER BaseAddr:0x0 Size:0x1400000
MBR BaseAddr:0x1400000 Size:0x80000
EBR1 BaseAddr:0x1480000 Size:0x80000
PRO_INFO BaseAddr:0x1500000 Size:0x300000
NVRAM BaseAddr:0x1800000 Size:0x500000
PROTECT_F BaseAddr:0x1D00000 Size:0xA00000
PROTECT_S BaseAddr:0x2700000 Size:0xA00000
SECCFG BaseAddr:0x3100000 Size:0x20000
UBOOT BaseAddr:0x3120000 Size:0x60000
BOOTIMG BaseAddr:0x3180000 Size:0x1000000
RECOVERY BaseAddr:0x4180000 Size:0x1000000
SEC_RO BaseAddr:0x5180000 Size:0x600000
MISC BaseAddr:0x5780000 Size:0x80000
LOGO BaseAddr:0x5800000 Size:0x300000
EBR2 BaseAddr:0x5B00000 Size:0x80000
EXPDB BaseAddr:0x5B80000 Size:0xA00000
ANDROID BaseAddr:0x6580000 Size:0x80000000
CACHE BaseAddr:0x86580000 Size:0x7E00000
USRDATA BaseAddr:0x8E380000 Size:0x80000000
FAT BaseAddr:0x10E380000 Size:0xC3000000
BMTPOOL BaseAddr:0xFFFF0000 Size:0x1500000
>>Done.
(2) انفو للفلاشة على
Chinese Miracle-2
كود:
BB_CPU_PID : 6582
BB_CPU_NME : [MediaTek] MT6582_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with SPRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1552.01.01
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x87
NAND Flash : NOT INSTALLED
eMMC Flash : 1101003030384739320016D228FA21A7
Initialize Memory ...
DRAM already initialized by Preloader
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x11 , OEM : 0100
[eMMC] : FLASH_INF : [TOSHIBA] , 29G80
[eMMC] : FLASH_CID : 1101003030384739320016D228FA21A7
[eMMC] : FLASH_BRT : 0x00400000 , 0x00400000 , 0x00080000
[eMMC] : FLASH_LEN : 0x00000001D2000000
[eMMC] : FLASH_UCP : 7456 MiB [eMMC 8 GiB]
DEV RID : 8456413AA863FB97302699AAF417DEDB
INT RAM : 0x00020000
EXT RAM : 0x20000000
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
[AP] : Initial info read Ok!
Brand : Haier
ProdName : D71
ProdModel : D71
Device : D71
AndroidVer: 4.4.2
MTKxCPU : MT6582
MTKxPRJ : ALPS.KK1.MP1.V2.10
Done!
رابط التحميل الفلاشة
والى هنا انتهى موضع اليوم اتمنى ان ينال اعجابكم
ارجو الضغط على زر التقيم والشكر
.gif)
مجموعه متنوعه من فلاشات MTK النادره مسحوبة على العملاق CM2
رد مع اقتباس
المفضلات
