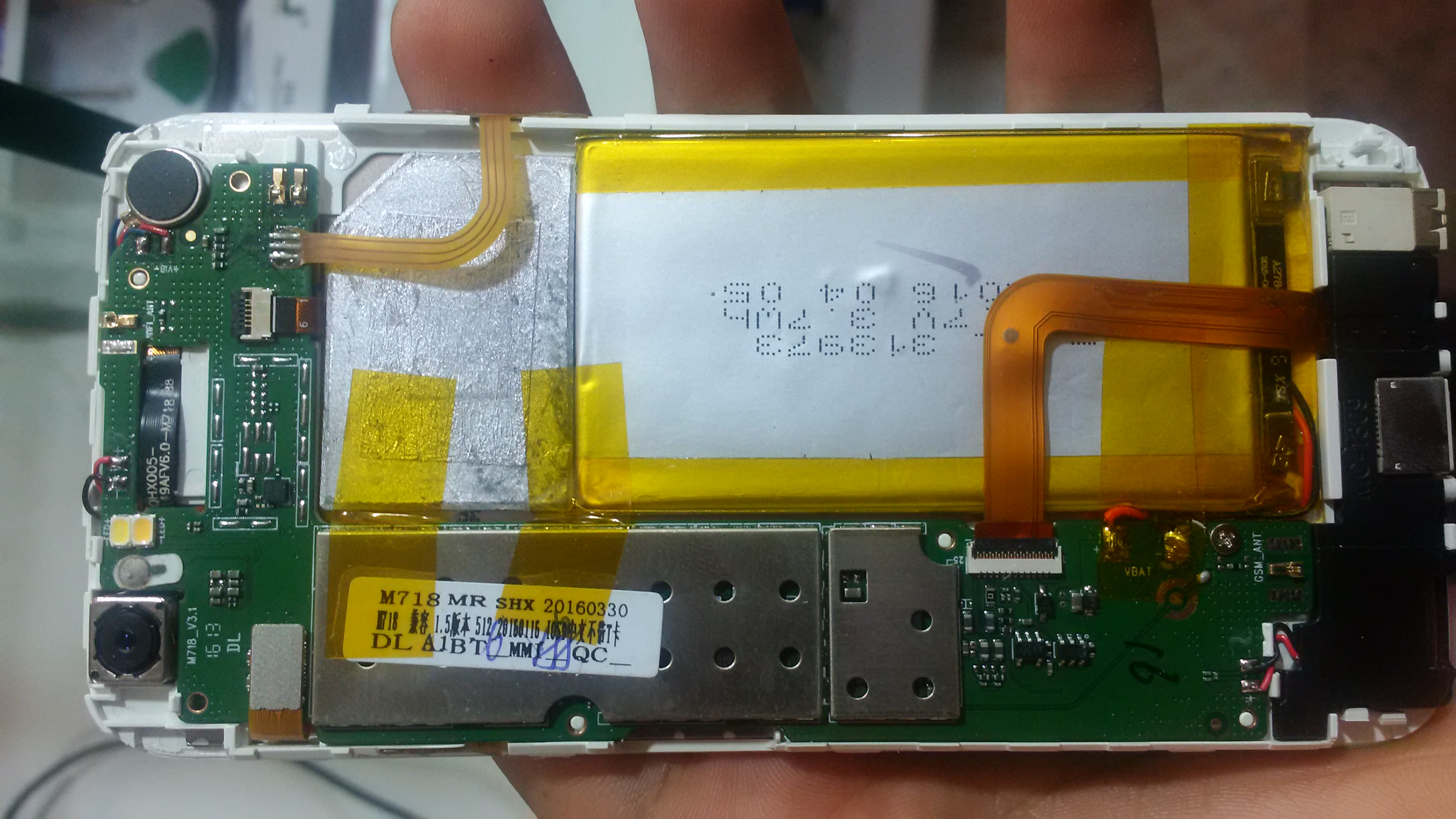

محتاج فلاشة iphone 6s mt6571

[alma3dl]

need this rom
iphone 6s
mt6571
[0]Part: PRELOADER Begin: 0x0 Len: 0x80000
[1]Part: PRO_INFO Begin: 0x80000 Len: 0x100000
[2]Part: NVRAM Begin: 0x180000 Len: 0x180000
[3]Part: PROTECT_F Begin: 0x300000 Len: 0x180000
[4]Part: SECCFG Begin: 0x480000 Len: 0x20000
[5]Part: UBOOT Begin: 0x4a0000 Len: 0x80000
[6]Part: BOOTIMG Begin: 0x520000 Len: 0x600000
[7]Part: RECOVERY Begin: 0xb20000 Len: 0x600000
[8]Part: SEC_RO Begin: 0x1120000 Len: 0x40000
[9]Part: MISC Begin: 0x1160000 Len: 0x60000
[10]Part: LOGO Begin: 0x11c0000 Len: 0x100000
[11]Part: EXPDB Begin: 0x12c0000 Len: 0x200000
[12]Part: ANDROID Begin: 0x14c0000 Len: 0x14f00000
[13]Part: CACHE Begin: 0x163c0000 Len: 0x180000
[14]Part: USRDATA Begin: 0x16540000 Len: 0x9080000
[15]Part: BMTPOOL Begin: 0xffff0050 Len: 0x0
Offset: 0x1f598000 Count: 16
Warning, imei marker not found in nvram, nvram posible damaged
Warning, nvram posible damaged!!
If phone have damaged IMEI, write good nvram first.
Partition table saved to: Android_MTK\partition_tables\
Wait untill phone will start charging.
All done.

---

[‏ASEM DANIAL]

ما مشكلة جهاز

[alma3dl]

ما مشكلة جهاز

شنق على شعار

[‏ASEM DANIAL]

اعمل بكب اولا وجرب هاي

GEM FLASH

[alma3dl]

اعمل بكب اولا وجرب هاي

GEM FLASH

[‏ASEM DANIAL]

جرب الفلاشة

[alma3dl]

جرب الفلاشة

NAND: (4Gb+4096Mb) [Micron] MT29C4G96MAZAPCJA_5IT
BOOT STYLE : NAND BOOT
Size: 0x20000000 [0.500 GB]
BlockSize: 2048 SpareSize: 64 BMT Blocks 80
Detecting high speed port, wait......
If driver not installed, install high speed port driver.
If not need high speed port, disable it.
After repeat opperation.
Detecting high speed port, wait......
Detected : DA USB VCOM Port (COM30)
Warning, flashing preloader disabled!
If you change android version, preloader must be flashed.
Flash NAND Algo Start.
Error FlashTool Download: S_STORAGE_NOT_MATCH
Wait untill phone will start charging.
All done.

[alma3dl]

جرب الفلاشة

فول فلاش
Flash files count is :12
Action : Firmware update.
Selected 0-By CPU: MT6571_EMMC
Exe version: NCKDongle AndroidMTK 2.5.6.2
Scenario: Full Flash
Reinsert phone battery.
Battery must be charged.
Phone must be off with battery inside.
Please insert USB cable now...
Detected : PreLoader USB VCOM Port (COM31)
Phone detected...Please wait
Sending DA agent, please wait...
BaseBand CPU :MT6571_S00
BaseBand CPU Secure Version : FF
BaseBand CPU Bootloader Version : 01
----------------------------------------------------
INT RAM: 128 KB SDRAM
EXT RAM: 512 MB DRAM
----------------------------------------------------
NAND: (4Gb+4096Mb) [Micron] MT29C4G96MAZAPCJA_5IT
BOOT STYLE : NAND BOOT
Size: 0x20000000 [0.500 GB]
BlockSize: 2048 SpareSize: 64 BMT Blocks 80
Detecting high speed port, wait......
If driver not installed, install high speed port driver.
If not need high speed port, disable it.
After repeat opperation.
Detecting high speed port, wait......
Detected : DA USB VCOM Port (COM30)
Flash NAND Algo Start.
FORMAT NAND FLASH : BEGIN: 0x2d560000 - LEN: 0x8000000
Error: Invalid begging and end addresses are given for read operation on Flash. Please check your start address and length again.
Error: S_DA_INVALID_RANGE
[EMPTY]WARNING ..format adress not detected!
Warning: S_DA_INVALID_RANGE
Error FlashTool Download: S_STORAGE_NOT_MATCH
Wait untill phone will start charging.
All done.

[‏ASEM DANIAL]

ما هو وضع جهاز بعد تفليش

[alma3dl]

تم حلها شكر
