**VZR** · 09-07-2017, 12:53 PM

بسم الله الرحمن الرحيم

حصري على الجيم فلاش

فلاشة هاتف ADMET G7

بمعالج Mediatek MTK6572

NAND

الهاتف طبعا نسخة مقلدة عن
Huawei Ascend G7

الفلاشة مسحوبة عن طريق البوكس العملاق CM2

CM2 Log

كود:

Operation : Read Flash [ v1.58 ]

Power Off Phone , re-connect battery ,  Insert USB cable!

Wait for phone...
Phone found! [ 27 ]
Sync...
1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey

Wait for phone...
Phone found! [ 27 ]
Sync...
Inital Boot Ok!
BB_CPU_PID : 6572
BB_CPU_NME : [MediaTek] MT6572_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer   : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with PRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1624.16.07
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x88
NAND Flash : 000100BC009000550056000100BC0000
eMMC Flash : NOT INSTALLED
Initialize Memory ...
DRAM already initialized by Preloader
DAgent sent , init HW now
NAND FlashIC initialized
[NAND] : FLASH_VEN : 0x00A7 , NAND_UNKNOWN
[NAND] : FLASH_DIE : 0001 00BC 0090 0055 0056 0001 00BC
[NAND] : FLASH_LEN : 0x20000000
[NAND] : FLASH_EXT : 0800/0040/00/NIM_Px-2
DEV RID    : 0x7FC8A16AD8B68CDF2E595BA35436776B
INT RAM    : 0x00020000
EXT RAM    : 0x10000000 [256 MiB]
BOOT TYPE  : NAND_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!

Reading Flash Content now ...

[Read Ok] : preloader_yuanda72_cwet_lca.bin
[Read Ok] : lk.bin
[Read Ok] : boot.img
[Read Ok] : recovery.img
[Read Ok] : secro.img
[Read Ok] : logo.bin
[Read Ok] : system.img
[Read Ok] : cache.img
[Read Ok] : usrdata.img

[ScatCFG] : MT6572 / V1.1.1 / yuanda72_cwet_lca / NAND
FW Size : 306 MiB

Brand     : G7
ProdName  : G7
ProdModel : G7
Device    : G7
AndroidVer: 5.1.1
MTKxCPU   : MT6572
MTKxPRJ   : ALPS.KK1.MP7.V1

Android Info saved

Scatter saved to : D:\ReadBack-MTK\NAND\MT6572_NAND_G7__G7__G7__5.1.1__ALPS.KK1.MP7.V1

Done!
Elapsed: 00:03:07
Reconnect Power/Cable!

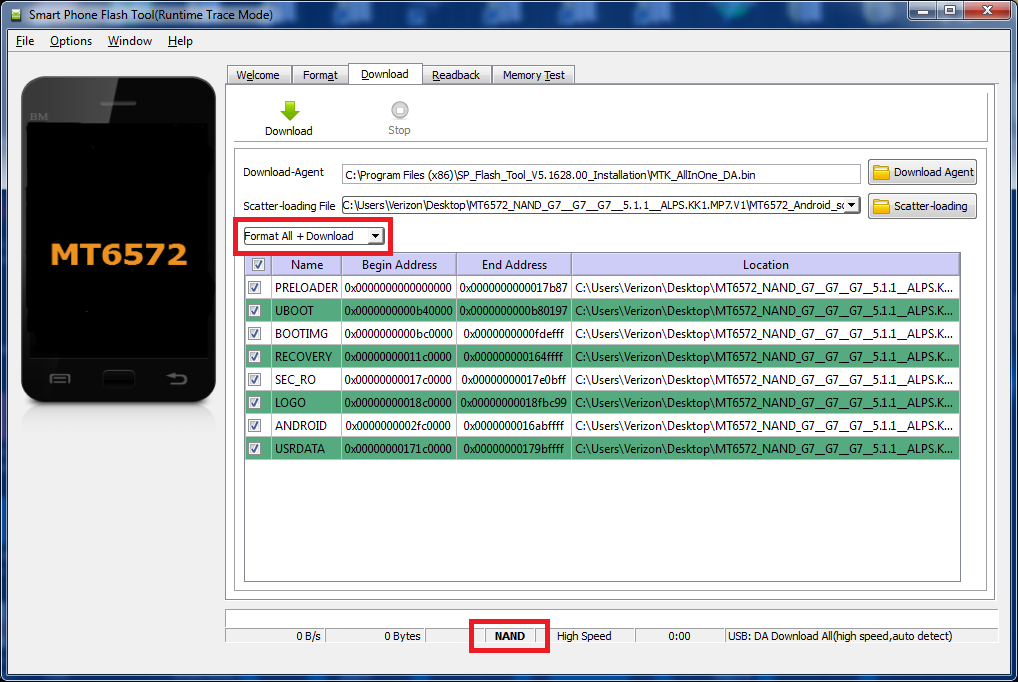

ملاحظة : ذاكرة الجهاز NAND وليس EMMC ؛ التفليش يتم عن طريق SP-Flash-Tool كما يلي
