مشكل في تفليش ZTE

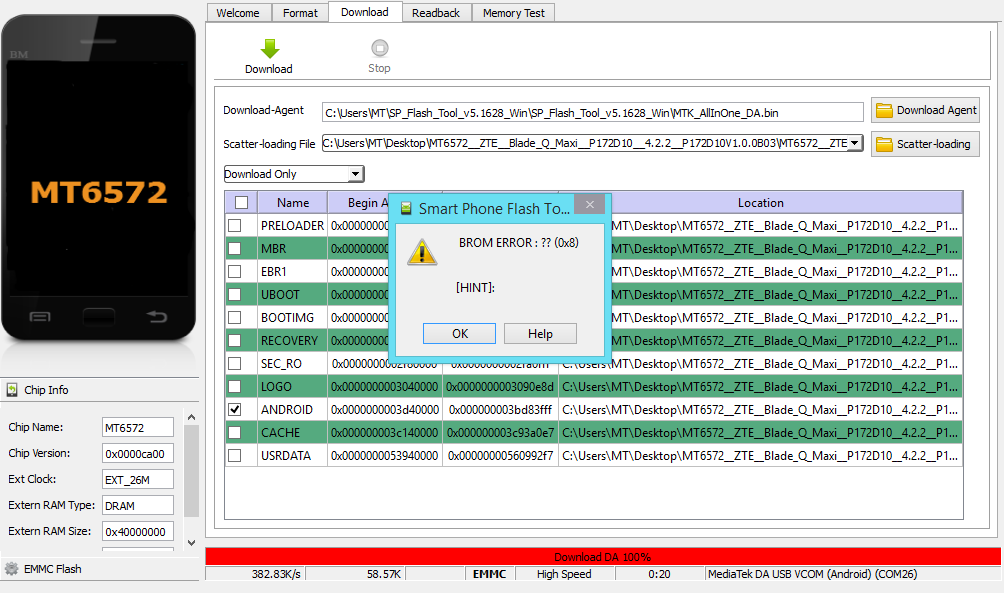

عند تفليش الهاتف يعطي هذا المشكل الهاتف Zte blade q mqx
تم تجريب اكثر من فلاشة
نفس المشكل على الميراكل و cm2 و الفولكانو
لوج العملية
كود:Wait for phone...Phone found! [ 53 ] Sync... Inital Boot Ok! BB_CPU_PID : 6572 BB_CPU_NME : [MediaTek] MT6572_S00 BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000 Processing BROM stage Settings for BROM configured! SecCfgVal : 0x00000000 BromVer : 0x00FF BLVersion : 0x0001 PreLoader : Active [ Boot with PL ] BootLdrSS : NORMAL with PRELOADER Processing DA stage DA Select done, will use MTK_AllInOne_DA_v5.1624.16.07 Sending and initialize DA ... Running DA ver.4.2 on BBID : 0x88 NAND Flash : NOT INSTALLED eMMC Flash : 90014A4834473164048600A389E5B02B Initialize Memory ... DRAM already initialized by Preloader DAgent sent , init HW now eMMC FlashIC initialized [eMMC] : FLASH_VEN : 0x90 , OEM : 014A [eMMC] : FLASH_INF : [HYNIX] , d1G4 [eMMC] : FLASH_CID : 90014A4834473164048600A389E5B02B [eMMC] : FLASH_BRT : 0x00200000 , 0x00200000 , 0x00200000 [eMMC] : FLASH_LEN : 0x00000000E7000000 [eMMC] : FLASH_UCP : 3696 MiB [eMMC 4 GiB] DEV RID : 0xA8E7A426A6D102F4A4675F932FED6D27 INT RAM : 0x00020000 EXT RAM : 0x40000000 [1 GiB] BOOT TYPE : EMMC_FLASH_BOOT SOC VERIFY : C1 Boot Ok! ScatCFG : BaseBand : MT6572 , Project : ztenj72_we_f01_jb3 , Storage : EMMC Setting : Flash Pre-Erase (Safe) : Enabled Setting : AFF verify : Enabled Setting : HW verify : Enabled Switching to HSUSB HSUSB Init Ok BL : Check HW compatibility BL : BBID supported by BootLoader! BL : Check eMMC compatibility BL : eMMC supported by BootLoader! BL : BatteryLevel : 4082 mV BL : BatteryLevel Ok BL : Flash Pre-Erase Total blocks to Erase : 2 Erase : 0x0000000000600000-0x0000000000100000 Erase : 0x0000000002300000-0x00000000E3E00000 Flash Pre-Erase Done, time used : 00:00:16 SecCfg Passed , 1799 BMT remark not need. Will skip Sending Preloader ... Use : preloader_ztenj72_we_f01_jb3.bin Preloader Sent , Init passed SecCfg Passed , 1799 PartCount : FFFFFFFF PartErr : Not initialized , will update PMT now ... Repartition Failed! Something wrong with HW or BL? Try make "Flash Erase" first! Operation Failed Elapsed: 00:00:51 Reconnect Power/Cable!
