كود:
# General Setting
#
####################################-=CHINESE II MIRACLE=-#####################################################
- general: MTK_PLATFORM_CFG
info:
- config_version: V1.1.2
platform: MT6737M
project: l675ae_1
storage: EMMC
boot_channel: MSDC_0
block_size: 0x20000
############################################################################################################
#
# Layout Setting
#
############################################################################################################
- partition_index: SYS0
partition_name: preloader
file_name: preloader_l675ae_1.bin
is_download: true
type: SV5_BL_BIN
linear_start_addr: 0x0
physical_start_addr: 0x0
partition_size: 0x400000
region: EMMC_BOOT_1
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: BOOTLOADERS
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS1
partition_name: pgpt
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x0
physical_start_addr: 0x0
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS2
partition_name: proinfo
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x80000
physical_start_addr: 0x80000
partition_size: 0x300000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS3
partition_name: nvram
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x380000
physical_start_addr: 0x380000
partition_size: 0x500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: BINREGION
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS4
partition_name: protect1
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x880000
physical_start_addr: 0x880000
partition_size: 0xA00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS5
partition_name: protect2
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x1280000
physical_start_addr: 0x1280000
partition_size: 0xA00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS6
partition_name: lk
file_name: lk.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x1C80000
physical_start_addr: 0x1C80000
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: true
reserve: 0x00
- partition_index: SYS7
partition_name: para
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x1D00000
physical_start_addr: 0x1D00000
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS8
partition_name: boot
file_name: boot.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x1D80000
physical_start_addr: 0x1D80000
partition_size: 0x1000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS9
partition_name: recovery
file_name: recovery.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x2D80000
physical_start_addr: 0x2D80000
partition_size: 0x1000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS10
partition_name: logo
file_name: logo.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x3D80000
physical_start_addr: 0x3D80000
partition_size: 0x800000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: true
reserve: 0x00
- partition_index: SYS11
partition_name: expdb
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x4580000
physical_start_addr: 0x4580000
partition_size: 0xA00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS12
partition_name: seccfg
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x4F80000
physical_start_addr: 0x4F80000
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS13
partition_name: oemkeystore
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x5000000
physical_start_addr: 0x5000000
partition_size: 0x200000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS14
partition_name: secro
file_name: secro.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x5200000
physical_start_addr: 0x5200000
partition_size: 0x600000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS15
partition_name: keystore
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x5800000
physical_start_addr: 0x5800000
partition_size: 0x800000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS16
partition_name: tee1
file_name: tz1.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x6000000
physical_start_addr: 0x6000000
partition_size: 0x500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: true
reserve: 0x00
- partition_index: SYS17
partition_name: tee2
file_name: tz2.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x6500000
physical_start_addr: 0x6500000
partition_size: 0x500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS18
partition_name: frp
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x6A00000
physical_start_addr: 0x6A00000
partition_size: 0x100000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS19
partition_name: nvdata
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x6B00000
physical_start_addr: 0x6B00000
partition_size: 0x2000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS20
partition_name: metadata
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x8B00000
physical_start_addr: 0x8B00000
partition_size: 0x2500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS21
partition_name: system
file_name: system.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0xB000000
physical_start_addr: 0xB000000
partition_size: 0xA0000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS22
partition_name: cache
file_name: cache.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0xAB000000
physical_start_addr: 0xAB000000
partition_size: 0x19000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS23
partition_name: userdata
file_name: userdata.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0xC4000000
physical_start_addr: 0xC4000000
partition_size: 0x10CF80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS24
partition_name: flashinfo
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0xFFFF0084
physical_start_addr: 0xFFFF0084
partition_size: 0x1000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: false
is_reserved: true
operation_type: RESERVED
empty_boot_needed: false
reserve: 0x00
- partition_index: SYS25
partition_name: sgpt
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0xFFFF0004
physical_start_addr: 0xFFFF0004
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: false
is_reserved: true
operation_type: RESERVED
empty_boot_needed: false
reserve: 0x00

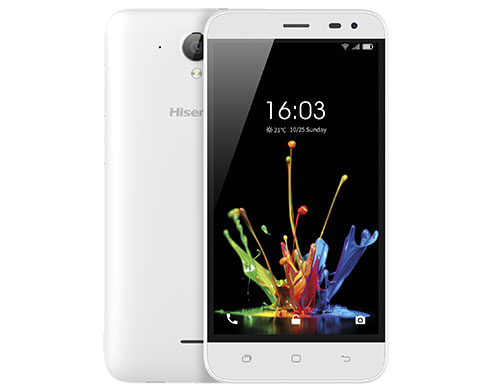

فلاشة حصرية لجهاز Hisense L675AE
