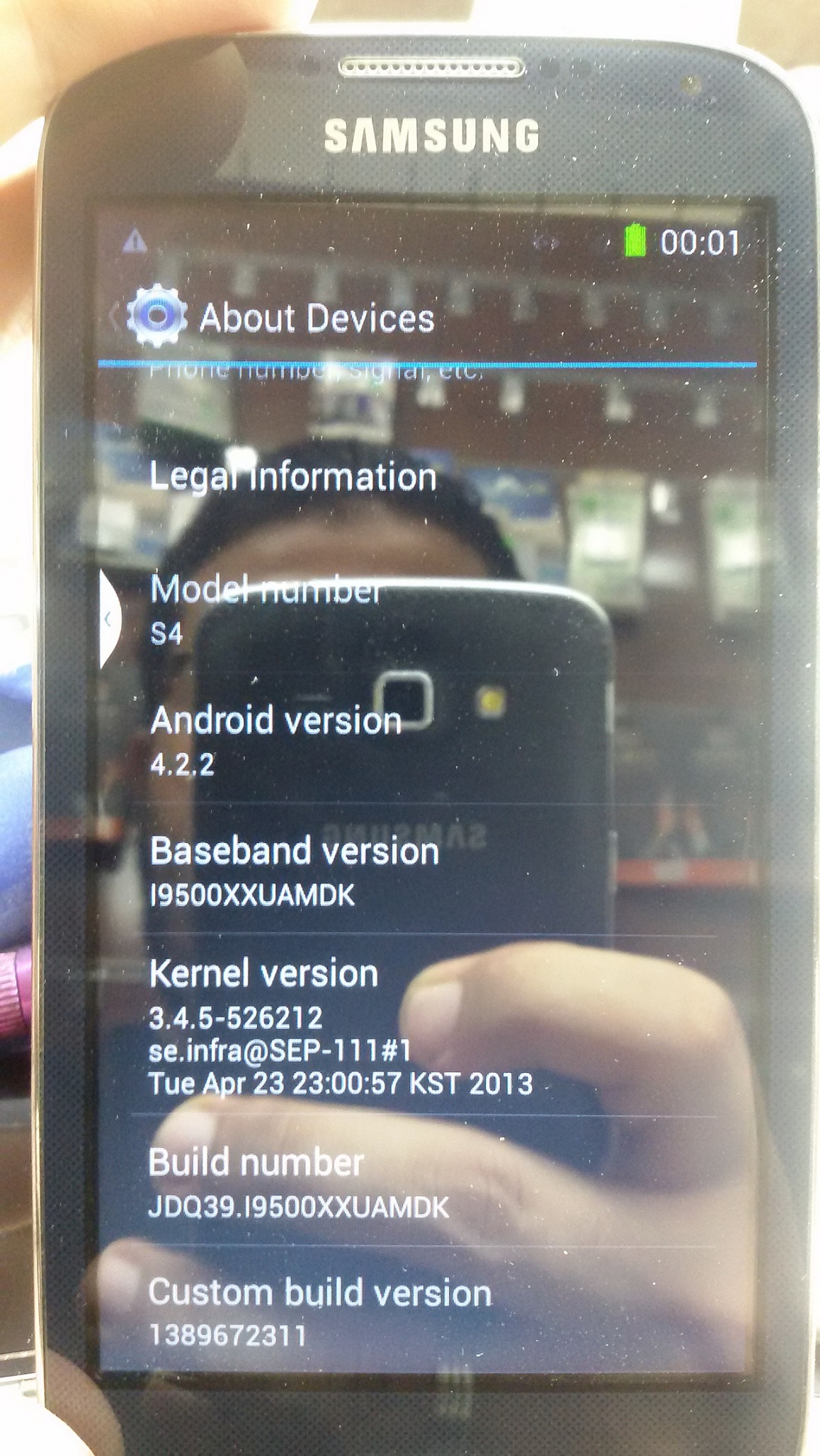

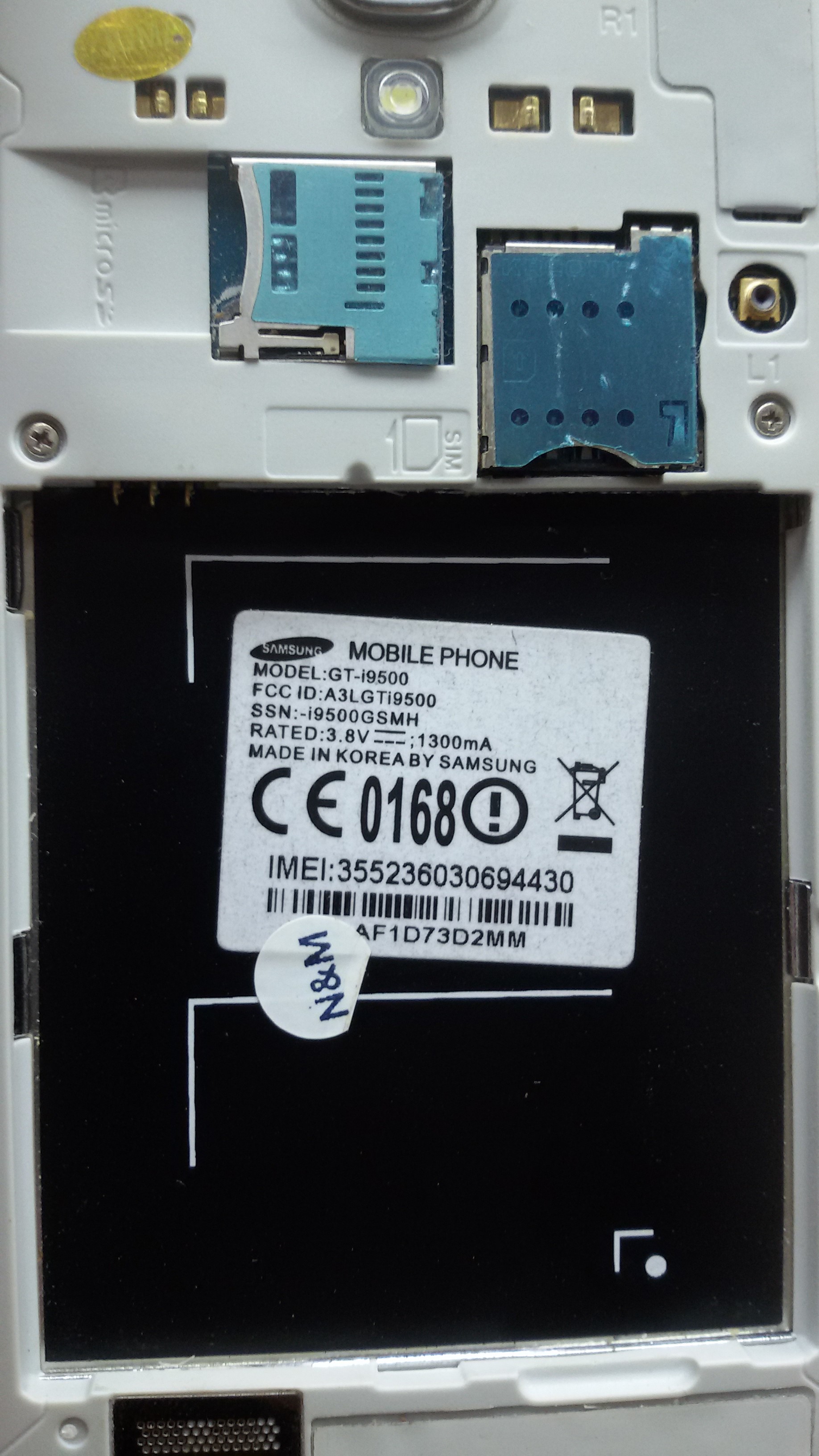

فلاشه GT-I9500 CPU TYPEMT6572 Flash Type NAND_MT29C4G48MAZAPAKD

**MohamedFarouk** · 06-08-2015, 04:10 PM

كود:

Definition Applied Waiting for USB Port... Set MediaTek PreLoader USB VCOM Port (COM24) Please Hold "ON" to connect with the phone... Connected to Phone. CPU: MT6572 SW:0000 Ver: CA01 Downloading Boot8 ... Nand Flash Type: Nand_NEW_006D Nand Flash Code: 002C00BC(00900055) Nand Flash Size: 0x20000000 Hex Bytes INT/EXT RAM Size: 0xC4800+0x0 Reading Size: 0x21000000 Reading infr(Nand)... PRELOADER BaseAddr:0x0 Size:0x80000 PRO_INFO BaseAddr:0x80000 Size:0x100000 NVRAM BaseAddr:0x180000 Size:0x180000 PROTECT_F BaseAddr:0x300000 Size:0x180000 PROTECT_S BaseAddr:0x480000 Size:0x180000 SECCFG BaseAddr:0x600000 Size:0x20000 UBOOT BaseAddr:0x620000 Size:0x60000 BOOTIMG BaseAddr:0x680000 Size:0x600000 RECOVERY BaseAddr:0xC80000 Size:0x600000 SEC_RO BaseAddr:0x1280000 Size:0x40000 MISC BaseAddr:0x12C0000 Size:0x60000 LOGO BaseAddr:0x1320000 Size:0x100000 EXPDB BaseAddr:0x1420000 Size:0x200000 FAT BaseAddr:0x1620000 Size:0x1900000 ANDROID BaseAddr:0x2F20000 Size:0x11800000 CACHE BaseAddr:0x14720000 Size:0x700000 USRDATA BaseAddr:0x14E20000 Size:0xA7A0000 BMTPOOL BaseAddr:0xFFFF0050 Size:0x0 >>Done.

كود:

Available Ports:COM1 COM3 Current Port:COM3 Analysis of USB port,Please insert phone USB cable. Connecting... CPU TYPE:MT6572 Hardware version:CA01 Software version:0000 SecCfgVal :0x00000000 BromVersion :0xFF BLVersion :0x01 Boot downloading complete! FlashID:002C00BC00900055 Flash Type: NAND_MT29C4G48MAZAPAKD FlashLen:20000000 PRELOADER: addr:0x000000 --length:0x080000 PRO_INFO: addr:0x080000 --length:0x100000 NVRAM: addr:0x180000 --length:0x180000 PROTECT_F: addr:0x300000 --length:0x180000 PROTECT_S: addr:0x480000 --length:0x180000 SECCFG: addr:0x600000 --length:0x020000 UBOOT: addr:0x620000 --length:0x060000 BOOTIMG: addr:0x680000 --length:0x600000 RECOVERY: addr:0xC80000 --length:0x600000 SEC_RO: addr:0x1280000 --length:0x040000 MISC: addr:0x12C0000 --length:0x060000 LOGO: addr:0x1320000 --length:0x100000 EXPDB: addr:0x1420000 --length:0x200000 FAT: addr:0x1620000 --length:0x1900000 ANDROID: addr:0x2F20000 --length:0x11800000 CACHE: addr:0x14720000 --length:0x700000 USRDATA: addr:0x14E20000 --length:0xA7A0000 BMTPOOL: addr:0xFFFF0050 --length:0x000000 >>Format addr:0x14E20000 --Format length:0x9DA0000

GT-I9500 CPU TYPEMT6572 Flash Type NAND_MT29C4G48MAZAPAKD
