حصريا فلاشة و طريقة تفليش Archos_59_Titanium

**mohamed gasser** · 25-03-2016, 12:00 AM

اليوم معنا فلاشة جديد وهى

Archos_59_Titanium

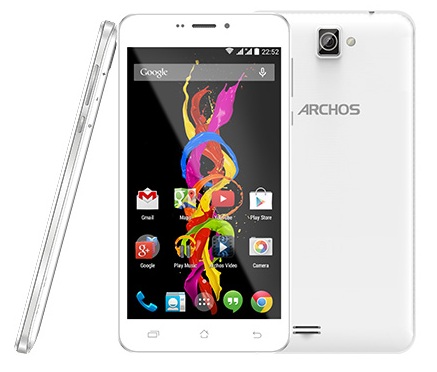

صورة الهاتف

معلومات الهاتف على المريكل

4. Battery Should be Charged more then 50%
Waiting for USB Port...
Set MediaTek PreLoader USB VCOM Port (COM26)
Please Hold "ON" to connect with the phone...
Connected to Phone.
CPU: MT6582 SW:0001 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x00E7400000
Flash Type: EMMC
INT/EXT RAM Size: 0x0+0x0
Reading infr(EMMC)...
id:KOT49H
version:4.4.2
model:Archos 59 Titanium
manufacturer:archos
brand:archos
manufacturer:archos
model:Archos 59 Titanium
PRELOADER BaseAddr:0x0 Size:0x1400000
MBR BaseAddr:0x1400000 Size:0x80000
EBR1 BaseAddr:0x1480000 Size:0x80000
PRO_INFO BaseAddr:0x1500000 Size:0x300000
NVRAM BaseAddr:0x1800000 Size:0x500000
PROTECT_F BaseAddr:0x1D00000 Size:0xA00000
PROTECT_S BaseAddr:0x2700000 Size:0xA00000
SECCFG BaseAddr:0x3100000 Size:0x20000
UBOOT BaseAddr:0x3120000 Size:0x60000
BOOTIMG BaseAddr:0x3180000 Size:0x600000
RECOVERY BaseAddr:0x3780000 Size:0x600000
SEC_RO BaseAddr:0x3D80000 Size:0x600000
MISC BaseAddr:0x4380000 Size:0x80000
LOGO BaseAddr:0x4400000 Size:0x300000
EXPDB BaseAddr:0x4700000 Size:0xA00000
ANDROID BaseAddr:0x5100000 Size:0x40000000
CACHE BaseAddr:0x45100000 Size:0x20000000
USRDATA BaseAddr:0x65100000 Size:0x81220000
BMTPOOL BaseAddr:0xFFFF0000 Size:0x1500000
>>Done.

وعلى المريكل 2

Created by Infinity-Box (c) Chinese Miracle II (c) 2016
Device Brand : archos
Device Model : ac59ti
Device CPU : MT6582
Device IntName : MTKAC59TI
Device Version : 4.4.2
Device Compile : 22/09/2014 03:52:12 �
Device Project : ALPS.KK1.MP1.V2.11
Device ExtInfo : Archos 59 Titanium

Reading Flash Content now ...

Brand : archos
ProdName : MTKAC59TI
ProdModel : Archos 59 Titanium
Device : ac59ti
AndroidVer: 4.4.2
MTKxCPU : MT6582
MTKxPRJ : ALPS.KK1.MP1.V2.11

[Read Ok] : preloader_mr601.bin
[Read Ok] : MBR
[Read Ok] : EBR1
[Read Ok] : lk.bin
[Read Ok] : boot.img
[Read Ok] : recovery.img
[Read Ok] : secro.img
[Read Ok] : logo.bin
[Read Ok] : system.img
[Make Ok] : cache.img
[Make Ok] : userdata.img

[ScatCFG] : MT6582 / V1.1.1 / mr601 / EMMC
Android Info saved
MAUI Meta DB saved
HWConfig Info saved
FW Size : 950 MiB
Scatter saved to : C:\InfinityBox\CM2MTK\Flash\MT6582__archos__Archos_59_Titanium__ac59ti__4.4.2__ALPS.KK1.MP1.V2.11\

All done!

طبعن الفلاشة مسحوبه بالميركول 2

وتعمل على الفلاش تول

ودة رابط التحميل

http://www.4shared.com/rar/cS747pmIb...s_59_Tita.html
