######################################-=INFINITY-BOX=-#######################################################
# General Setting
#
####################################-=CHINESE II MIRACLE=-#####################################################
- general: MTK_PLATFORM_CFG
info:
- config_version: V1.1.1
platform: MT6582
project: mr601
storage: EMMC
boot_channel: MSDC_0
block_size: 0x20000
############################################################################################################
#
# Layout Setting
#
############################################################################################################
- partition_index: SYS0
partition_name: PRELOADER
file_name: preloader_mr601.bin
is_download: true
type: SV5_BL_BIN
linear_start_addr: 0x0
physical_start_addr: 0x0
partition_size: 0x1400000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: BOOTLOADERS
reserve: 0x00
- partition_index: SYS1
partition_name: MBR
file_name: MBR
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x1400000
physical_start_addr: 0x1400000
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS2
partition_name: EBR1
file_name: EBR1
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x1480000
physical_start_addr: 0x1480000
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS3
partition_name: PRO_INFO
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x1500000
physical_start_addr: 0x1500000
partition_size: 0x300000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS4
partition_name: NVRAM
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x1800000
physical_start_addr: 0x1800000
partition_size: 0x500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: BINREGION
reserve: 0x00
- partition_index: SYS5
partition_name: PROTECT_F
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x1D00000
physical_start_addr: 0x1D00000
partition_size: 0xA00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS6
partition_name: PROTECT_S
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x2700000
physical_start_addr: 0x2700000
partition_size: 0xA00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: PROTECTED
reserve: 0x00
- partition_index: SYS7
partition_name: SECCFG
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x3100000
physical_start_addr: 0x3100000
partition_size: 0x20000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS8
partition_name: UBOOT
file_name: lk.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x3120000
physical_start_addr: 0x3120000
partition_size: 0x60000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS9
partition_name: BOOTIMG
file_name: boot.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x3180000
physical_start_addr: 0x3180000
partition_size: 0x600000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS10
partition_name: RECOVERY
file_name: recovery.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x3780000
physical_start_addr: 0x3780000
partition_size: 0x600000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS11
partition_name: SEC_RO
file_name: secro.img
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x3D80000
physical_start_addr: 0x3D80000
partition_size: 0x600000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS12
partition_name: MISC
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x4380000
physical_start_addr: 0x4380000
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS13
partition_name: LOGO
file_name: logo.bin
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x4400000
physical_start_addr: 0x4400000
partition_size: 0x300000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS14
partition_name: EBR2
file_name: EBR2
is_download: true
type: NORMAL_ROM
linear_start_addr: 0x4700000
physical_start_addr: 0x4700000
partition_size: 0x80000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS15
partition_name: EXPDB
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x4780000
physical_start_addr: 0x4780000
partition_size: 0xA00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS16
partition_name: ANDROID
file_name: system.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0x5180000
physical_start_addr: 0x5180000
partition_size: 0x40000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS17
partition_name: CACHE
file_name: cache.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0x45180000
physical_start_addr: 0x45180000
partition_size: 0x7E00000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS18
partition_name: USRDATA
file_name: userdata.img
is_download: true
type: EXT4_IMG
linear_start_addr: 0x4CF80000
physical_start_addr: 0x4CF80000
partition_size: 0x40000000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: UPDATE
reserve: 0x00
- partition_index: SYS19
partition_name: FAT
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0x8CF80000
physical_start_addr: 0x8CF80000
partition_size: 0x59380000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: true
is_reserved: false
operation_type: INVISIBLE
reserve: 0x00
- partition_index: SYS20
partition_name: BMTPOOL
file_name: NONE
is_download: false
type: NORMAL_ROM
linear_start_addr: 0xFFFF00A8
physical_start_addr: 0xFFFF00A8
partition_size: 0x1500000
region: EMMC_USER
storage: HW_STORAGE_EMMC
boundary_check: false
is_reserved: true
operation_type: RESERVED
reserve: 0x00

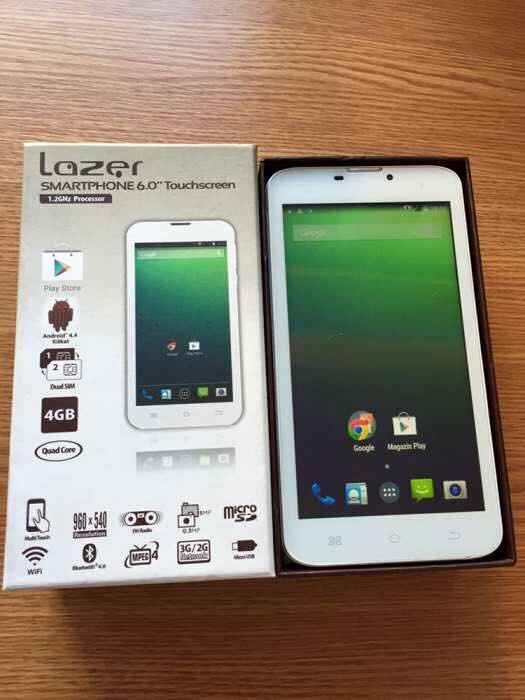

06 فلاشة حصرية لهاتف Lazer MW6617 فقط على الجيم الفلاش
