G531h boot

**kani47** · 09-01-2017, 06:34 PM

السلام عليكم جهازg531h الزبون يقول قام بعمل ريبير ايمي فقطفى الجهاز يسحب صفر على الباور سبلاي وانا قمت بعمل اصلاح emmc على ايزي جتاغ وتمت العملية بنجاح تام ولكن الجهاز ضل طافي ويسحب صفر

**LYON** · 09-01-2017, 07:41 PM

ممكن ترفع اللوغ

**kani47** · 11-01-2017, 07:45 PM

تمام اخي غدا سارفع الاينفو له ولجهاز j100h نفس المشكلة

**kani47** · 12-01-2017, 08:57 AM

اخي هاد لجهاز j100h وبعد قليل سارفع لجهاز g531h

1

EMMC CID : 1501004E4A325A4D42002BC4B0F892B4
EMMC CSD : D02701320F5903FFF6DBFFEF8E40400C
EMMC Manufacturer ID: 0015 , OEM ID: 0100
EMMC Date: 09/2015 Rev.0x0
EMMC NAME: NJ2ZMB , S/N: 734310648
EMMC NAME (HEX): 4E4A325A4D4200
EMMC ROM1 (Main User Data) Capacity: 3728 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 512 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
EMMC Password Locked: No
Extended CSD rev 1.7 (MMC 5.0)
Boot configuration [PARTITION_CONFIG: 0x08] Boot from:ROM2 (Boot Partition 1)
Boot bus config [177]: 0x01 , width 4bits , Partition config [179]: 0x08.
H/W reset function [RST_N_FUNCTION]: 0x00
High-capacity W protect group size [HC_WP_GRP_SIZE: 0x00000000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
Device support partitioning feature
Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Backup saved: NJ2ZMB_ 734310648_20170112_0949.extcsd
Done.

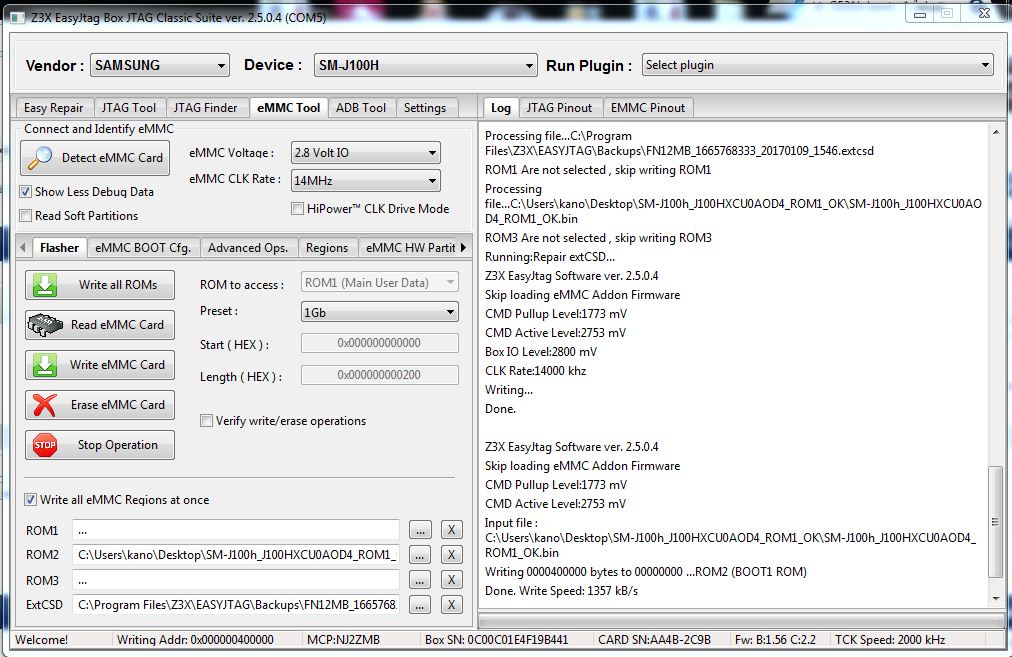

وهاد لوغ العملية كتابة

**kani47** · 12-01-2017, 09:11 AM

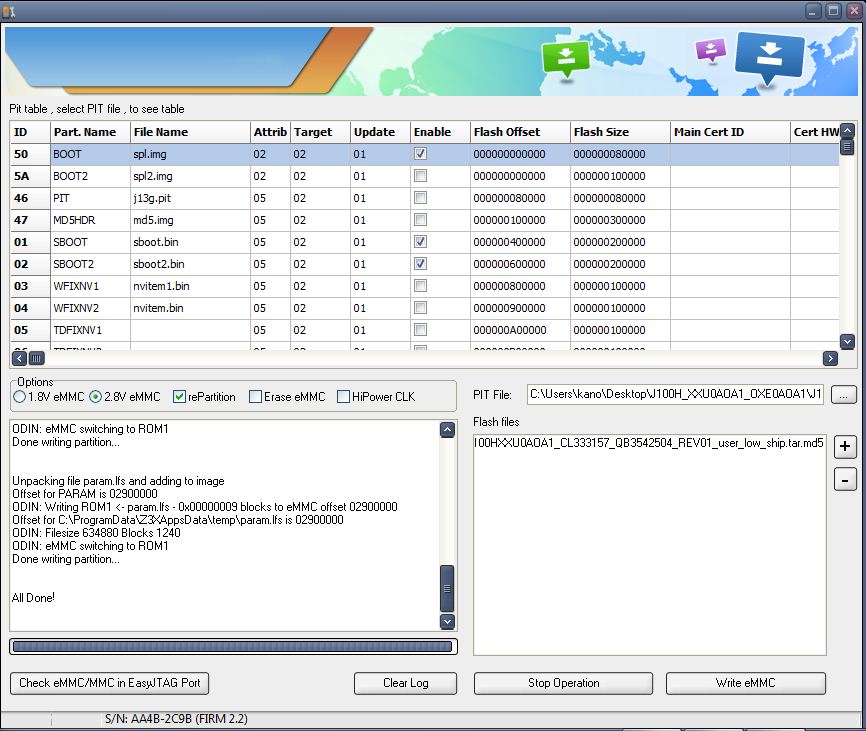

طبعا تم التجربة على هذه الواجهة ايضا دون جدوى

**kani47** · 12-01-2017, 09:50 AM

وهذا لجهاز g531h

EMMC CID : 150100464E31324D420063499B8D1354
EMMC CSD : D02701320F5903FFF6DBFFEF8E40400C
EMMC Manufacturer ID: 0015 , OEM ID: 0100
EMMC Date: 01/2016 Rev.0x0
EMMC NAME: FN12MB , S/N: 1665768333
EMMC NAME (HEX): 464E31324D4200
EMMC ROM1 (Main User Data) Capacity: 7456 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 512 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
EMMC Password Locked: No
Extended CSD rev 1.7 (MMC 5.0)
Boot configuration [PARTITION_CONFIG: 0x08] Boot from:ROM2 (Boot Partition 1)
Boot bus config [177]: 0x01 , width 4bits , Partition config [179]: 0x08.
H/W reset function [RST_N_FUNCTION]: 0x00
High-capacity W protect group size [HC_WP_GRP_SIZE: 0x00000000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
Device support partitioning feature
Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Backup saved: FN12MB_1665768333_20170112_1035.extcsd
Done.

2

Checking NAND Image : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM1_00000000_06600000.bin
File successefuly loaded!

Found ROM2 and automatically selected.
Found ROM3 and automatically selected.
Checking NAND Image : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM2_00000000_00400000.bin
File successefuly loaded!

Found ROM3 and automatically selected.
Checking NAND Image : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM3_00000000_00400000.bin
File successefuly loaded!

Found ROM2 and automatically selected.
Found ROM1 and automatically selected.
extCSD Are not selected , skip writing extCSD
Processing file...C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM1_00000000_06600000.bin
Processing file...C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM2_00000000_00400000.bin
Processing file...C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM3_00000000_00400000.bin
Z3X EasyJtag Software ver. 2.5.0.4
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:3341 mV
Input file : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM1_00000000_06600000.bin
Writing 0006600000 bytes to 00000000 ...ROM1 (USER ROM)
Done. Write Speed: 1085 kB/s

Z3X EasyJtag Software ver. 2.5.0.4
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:3341 mV
Input file : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM2_00000000_00400000.bin
Writing 0000200000 bytes to 00000000 ...ROM2 (BOOT1 ROM)
Done. Write Speed: 1092 kB/s

Z3X EasyJtag Software ver. 2.5.0.4
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:3341 mV
Input file : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM3_00000000_00400000.bin
Writing 0000200000 bytes to 00000000 ...ROM3 (BOOT2 ROM)
Done. Write Speed: 834 kB/s

**kani47** · 12-01-2017, 09:41 AM

وهذا لجهاز g531h

EMMC CID : 150100464E31324D420063499B8D1354
EMMC CSD : D02701320F5903FFF6DBFFEF8E40400C
EMMC Manufacturer ID: 0015 , OEM ID: 0100
EMMC Date: 01/2016 Rev.0x0
EMMC NAME: FN12MB , S/N: 1665768333
EMMC NAME (HEX): 464E31324D4200
EMMC ROM1 (Main User Data) Capacity: 7456 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 512 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
EMMC Password Locked: No
Extended CSD rev 1.7 (MMC 5.0)
Boot configuration [PARTITION_CONFIG: 0x08] Boot from:ROM2 (Boot Partition 1)
Boot bus config [177]: 0x01 , width 4bits , Partition config [179]: 0x08.
H/W reset function [RST_N_FUNCTION]: 0x00
High-capacity W protect group size [HC_WP_GRP_SIZE: 0x00000000]
Partitioning Support [PARTITIONING_SUPPORT]: 0x07
Device support partitioning feature
Device can have enhanced tech.
Partitioning Setting [PARTITION_SETTING_COMPLETED]: 0x00
---------------------------------------------
Backup saved: FN12MB_1665768333_20170112_1035.extcsd
Done.

2

Checking NAND Image : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM1_00000000_06600000.bin
File successefuly loaded!

Found ROM2 and automatically selected.
Found ROM3 and automatically selected.
Checking NAND Image : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM2_00000000_00400000.bin
File successefuly loaded!

Found ROM3 and automatically selected.
Checking NAND Image : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM3_00000000_00400000.bin
File successefuly loaded!

Found ROM2 and automatically selected.
Found ROM1 and automatically selected.
extCSD Are not selected , skip writing extCSD
Processing file...C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM1_00000000_06600000.bin
Processing file...C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM2_00000000_00400000.bin
Processing file...C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM3_00000000_00400000.bin
Z3X EasyJtag Software ver. 2.5.0.4
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:3341 mV
Input file : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM1_00000000_06600000.bin
Writing 0006600000 bytes to 00000000 ...ROM1 (USER ROM)
Done. Write Speed: 1085 kB/s

Z3X EasyJtag Software ver. 2.5.0.4
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:3341 mV
Input file : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM2_00000000_00400000.bin
Writing 0000200000 bytes to 00000000 ...ROM2 (BOOT1 ROM)
Done. Write Speed: 1092 kB/s

Z3X EasyJtag Software ver. 2.5.0.4
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:3341 mV
Input file : C:\Users\kano\Desktop\SAMSUNG_SM-G531H_emmc_direct_dump\SAMSUNG_SM-G531H_emmc_direct_dump\EMMC_ROM3_00000000_00400000.bin
Writing 0000200000 bytes to 00000000 ...ROM3 (BOOT2 ROM)
Done. Write Speed: 834 kB/s

**kani47** · 21-01-2017, 09:53 PM

يا اخوان اجاني جهاز ثاني g531h نفس المشكلة قمت اصلاح emmc ولكن لم يشتغل شو الحل يا جماعة

**LYON** · 22-01-2017, 11:54 AM

عن تجرية بالامس كان عندي جهاز G530H محتاج اصدار اعلى
الجهاز فقد البوت الخاصة به
وتم توصيل الجهاز جديد واتمام العملية 100%
ولكن الجهاز لا يعمل وانحلت المشكلة بتغير قطعة الــ emmc واشتغال الجهاز تمام

**mak99** · 23-01-2017, 01:52 AM

المشاركة الأصلية كتبت بواسطة LYON

عن تجرية بالامس كان عندي جهاز G530H محتاج اصدار اعلى
الجهاز فقد البوت الخاصة به
وتم توصيل الجهاز جديد واتمام العملية 100%
ولكن الجهاز لا يعمل وانحلت المشكلة بتغير قطعة الــ emmc واشتغال الجهاز تمام

يعني لايمكن تصليح البوت ولا اية
