نجاح كتابة dump لهاتفg7102 على العملاق

[m-mulham]

بسم الله الرحمن الرحيم وافضل الصلاة واتم التسليم على سيدنا محمد وعلى اله وصحبه اجمعين
تم بعون الله كتابة دامب لهاتف g7102
الهاتف نتيجة سوفت خطأ فقد البوت واصبح على البور يسحب 8 تقريبا
تم ارجاع البوت عند طريق كرت الذاكرة ولكن اصبح لا يقبل التفليش حتى بعد كتابة ملف pit

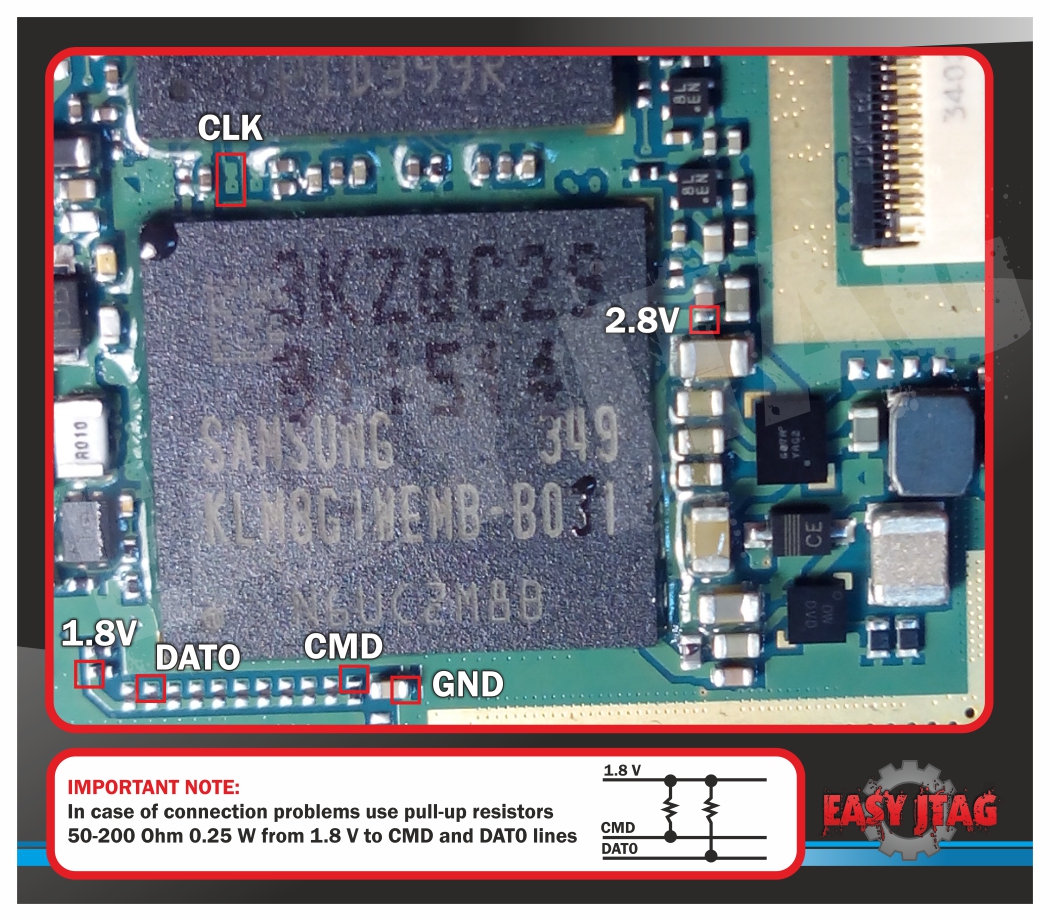

وعند اخراج كرت الذاكرة ووصلة jig لا يدخل داونلود تم التوصيل كما في الصورة

وعمل فورمات للذاكرة وضبط مصنع ثم تمرير ملف الدامب

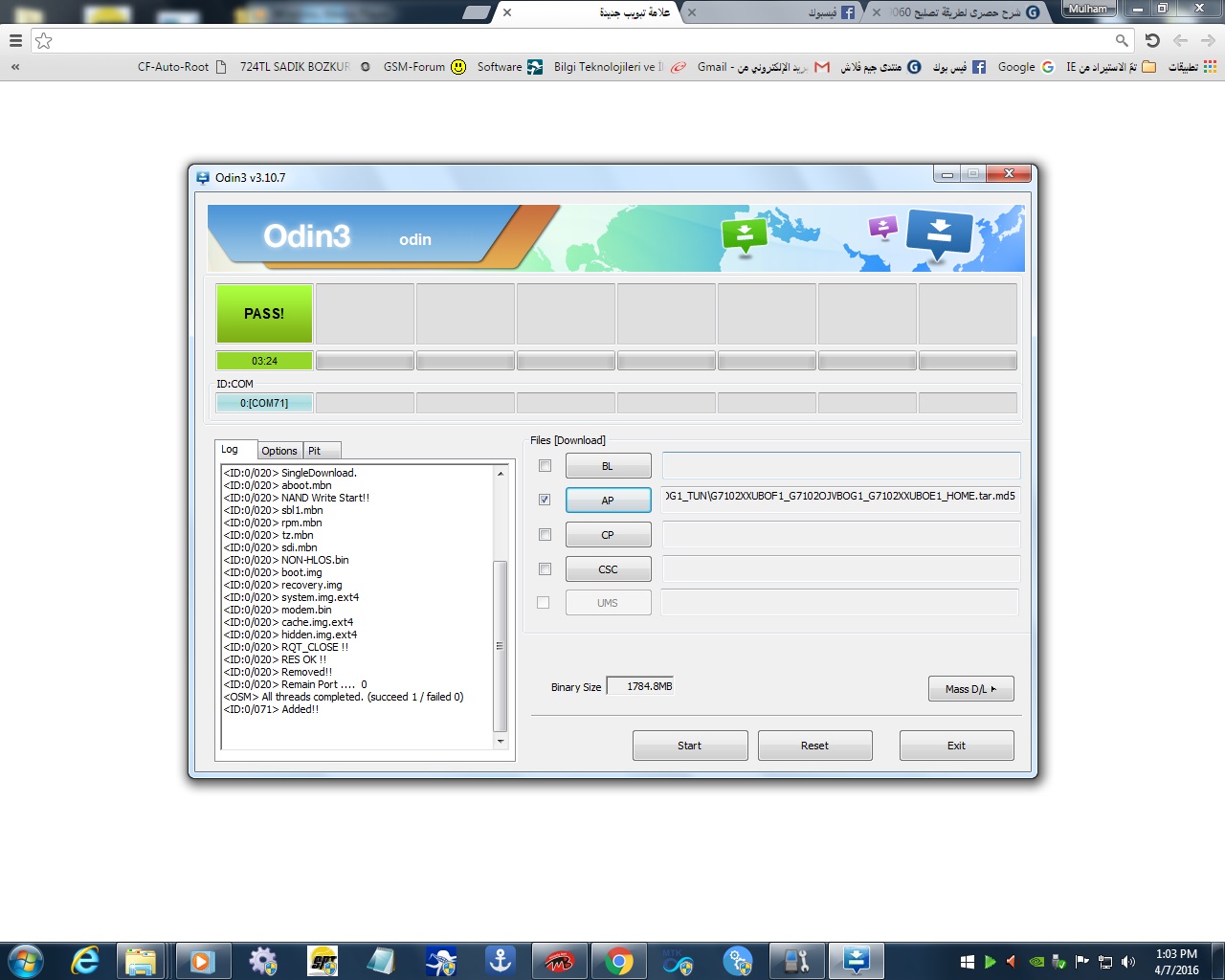

وبعد الانتهاء من الدامب ارجاع البوت عن طريق كرت الذاكرة ثم التفليش


والحمد لله اشتغل الهاتف ولكن بايمي صفار

وتم تصليح الايمي على الزد وهذا لوغ العملية
Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 2800 mV
Box S/N: 0900D022A4E5A705, ,FW Ver.: 01.52
CMD Pullup Level:1918 mV
CMD Active Level:2000 mV
Can't init device, Reason: CMD Timeout Error
Done.


Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 2800 mV
Box S/N: 0900D022A4E5A705, ,FW Ver.: 01.52
CMD Pullup Level:2103 mV
CMD Active Level:2660 mV
Can't init device, Reason: CMD Timeout Error
Done.


Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 2800 mV
Box S/N: 0900D022A4E5A705, ,FW Ver.: 01.52
CMD Pullup Level:2083 mV
CMD Active Level:2660 mV
Can't init device, Reason: CMD Timeout Error
Done.


Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 2800 mV
Box S/N: 0900D022A4E5A705, ,FW Ver.: 01.52
CMD Pullup Level:2093 mV
CMD Active Level:2650 mV
Can't init device, Reason: CMD Timeout Error
Done.


Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 2800 mV
Box S/N: 0900D022A4E5A705, ,FW Ver.: 01.52
CMD Pullup Level:2072 mV
CMD Active Level:2382 mV
eMMC Device Information
EMMC CID : 110100303038474530048C9991A91218
EMMC CSD : D05E00320F5903FFFFFFFFEF924000D2
EMMC Manufacturer ID: 0011 , OEM ID: 0100
EMMC Date: 01/2015 Rev.0x4
EMMC NAME: 008GE0 , S/N: 2358874537
EMMC NAME (HEX): 30303847453000
EMMC ROM1 (Main User Data) Capacity: 7456 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD rev 1.7 (MMC Unknown)
Boot configuration [PARTITION_CONFIG: 0x00] No boot partition configured.
Boot bus config [177]: 0x00 , width 1bit , Partition config [179]: 0x00.
H/W reset function [RST_N_FUNCTION]: 0x00
Backup saved: 008GE0_2358874537_20160407_1209.extcsd
Done.


Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 2800 mV
Box S/N: 0900D022A4E5A705, ,FW Ver.: 01.52
CMD Pullup Level:2072 mV
CMD Active Level:2371 mV
eMMC Device Information
EMMC CID : 110100303038474530048C9991A91218
EMMC CSD : D05E00320F5903FFFFFFFFEF924000D2
EMMC Manufacturer ID: 0011 , OEM ID: 0100
EMMC Date: 01/2015 Rev.0x4
EMMC NAME: 008GE0 , S/N: 2358874537
EMMC NAME (HEX): 30303847453000
EMMC ROM1 (Main User Data) Capacity: 7456 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD rev 1.7 (MMC Unknown)
Boot configuration [PARTITION_CONFIG: 0x00] No boot partition configured.
Boot bus config [177]: 0x00 , width 1bit , Partition config [179]: 0x00.
H/W reset function [RST_N_FUNCTION]: 0x00
Backup saved: 008GE0_2358874537_20160407_1209.extcsd
Done.


Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 3300 mV
Box S/N: 0900D022A4E5A705, ,FW Ver.: 01.52
CMD Pullup Level:2062 mV
CMD Active Level:2382 mV
eMMC Device Information
EMMC CID : 110100303038474530048C9991A91218
EMMC CSD : D05E00320F5903FFFFFFFFEF924000D2
EMMC Manufacturer ID: 0011 , OEM ID: 0100
EMMC Date: 01/2015 Rev.0x4
EMMC NAME: 008GE0 , S/N: 2358874537
EMMC NAME (HEX): 30303847453000
EMMC ROM1 (Main User Data) Capacity: 7456 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD rev 1.7 (MMC Unknown)
Boot configuration [PARTITION_CONFIG: 0x00] No boot partition configured.
Boot bus config [177]: 0x00 , width 1bit , Partition config [179]: 0x00.
H/W reset function [RST_N_FUNCTION]: 0x00
Backup saved: 008GE0_2358874537_20160407_1211.extcsd
Done.


Running:SAMSUNG: MoviNAND Reset + Format...
Z3X EasyJtag Software ver. 2.0.6.8
Skip loading eMMC Addon Firmware
CMD Pullup Level:2062 mV
CMD Active Level:2382 mV
This eMMC is not Samsung!
Done.


Running:SAMSUNG: MoviNAND Factory Reset...
Skip loading eMMC Addon Firmware
CMD Pullup Level:2062 mV
CMD Active Level:2382 mV
This eMMC is not Samsung!
Done.


You must select a valid extCSD file first!
extCSD file...C:\Program Files\Z3X\EASYJTAG\Backups\008GE0_2358874537_20160407_1211.extcsd
Running:Repair extCSD...
Z3X EasyJtag Software ver. 2.0.6.8
Skip loading eMMC Addon Firmware
CMD Pullup Level:2062 mV
CMD Active Level:2382 mV
Writing...
Done.


Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 3300 mV
Box S/N: , ,FW Ver.: 01.52
CMD Pullup Level:2083 mV
CMD Active Level:2526 mV
eMMC Device Information
EMMC CID : 110100303038474530048C9991A91218
EMMC CSD : D05E00320F5903FFFFFFFFEF924000D2
EMMC Manufacturer ID: 0011 , OEM ID: 0100
EMMC Date: 01/2015 Rev.0x4
EMMC NAME: 008GE0 , S/N: 2358874537
EMMC NAME (HEX): 30303847453000
EMMC ROM1 (Main User Data) Capacity: 7456 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD rev 1.7 (MMC Unknown)
Boot configuration [PARTITION_CONFIG: 0x00] No boot partition configured.
Boot bus config [177]: 0x00 , width 1bit , Partition config [179]: 0x00.
H/W reset function [RST_N_FUNCTION]: 0x00
Backup saved: 008GE0_2358874537_20160407_1216.extcsd
Done.

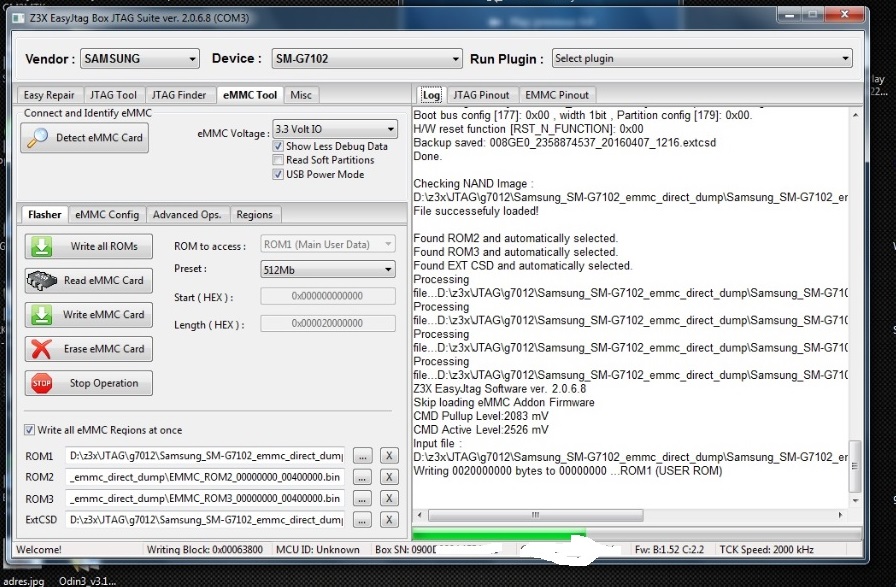

Checking NAND Image : D:\z3x\JTAG\g7012\Samsung_SM-G7102_emmc_direct_dump\Samsung_SM-G7102_emmc_direct_dump\EMMC_ROM1_00000000_40000000.bin
File successefuly loaded!
Found ROM2 and automatically selected.
Found ROM3 and automatically selected.
Found EXT CSD and automatically selected.
Processing file...D:\z3x\JTAG\g7012\Samsung_SM-G7102_emmc_direct_dump\Samsung_SM-G7102_emmc_direct_dump\EMMC_ROM1_00000000_40000000.bin
Processing file...D:\z3x\JTAG\g7012\Samsung_SM-G7102_emmc_direct_dump\Samsung_SM-G7102_emmc_direct_dump\EMMC_ROM2_00000000_00400000.bin
Processing file...D:\z3x\JTAG\g7012\Samsung_SM-G7102_emmc_direct_dump\Samsung_SM-G7102_emmc_direct_dump\EMMC_ROM3_00000000_00400000.bin
Processing file...D:\z3x\JTAG\g7012\Samsung_SM-G7102_emmc_direct_dump\Samsung_SM-G7102_emmc_direct_dump\8WMB3R_3248180956_20140604_2021.extcsd
Z3X EasyJtag Software ver. 2.0.6.8
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:2526 mV
Input file : D:\z3x\JTAG\g7012\Samsung_SM-G7102_emmc_direct_dump\Samsung_SM-G7102_emmc_direct_dump\EMMC_ROM1_00000000_40000000.bin
Writing 0020000000 bytes to 00000000 ...ROM1 (USER ROM)
Done. Write Speed: 658 kB/s


Z3X EasyJtag Software ver. 2.0.6.8
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:2526 mV
Input file : D:\z3x\JTAG\g7012\Samsung_SM-G7102_emmc_direct_dump\Samsung_SM-G7102_emmc_direct_dump\EMMC_ROM2_00000000_00400000.bin
Writing 0000400000 bytes to 00000000 ...ROM2 (BOOT1 ROM)
Done. Write Speed: 2987 kB/s


Z3X EasyJtag Software ver. 2.0.6.8
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:2526 mV
Input file : D:\z3x\JTAG\g7012\Samsung_SM-G7102_emmc_direct_dump\Samsung_SM-G7102_emmc_direct_dump\EMMC_ROM3_00000000_00400000.bin
Writing 0000400000 bytes to 00000000 ...ROM3 (BOOT2 ROM)
Done. Write Speed: 2987 kB/s


Running:Repair extCSD...
Z3X EasyJtag Software ver. 2.0.6.8
Skip loading eMMC Addon Firmware
CMD Pullup Level:2083 mV
CMD Active Level:2526 mV
Writing...
Done.


Z3X EasyJtag Software ver. 2.0.6.8
Loading eMMC Addon Firmware... IO: 3300 mV
Box S/N: , ,FW Ver.: 01.52
CMD Pullup Level:2093 mV
CMD Active Level:2516 mV
eMMC Device Information
EMMC CID : 110100303038474530048C9991A91218
EMMC CSD : D05E00320F5903FFFFFFFFEF924000D2
EMMC Manufacturer ID: 0011 , OEM ID: 0100
EMMC Date: 01/2015 Rev.0x4
EMMC NAME: 008GE0 , S/N: 2358874537
EMMC NAME (HEX): 30303847453000
EMMC ROM1 (Main User Data) Capacity: 7456 MB
EMMC ROM2 (Boot Partition 1) Capacity: 4096 kB
EMMC ROM3 (Boot Partition 2) Capacity: 4096 kB
EMMC RPMB (Replay Protected Memory Block) Capacity: 4096 kB
EMMC Permanent Write Protection: No
EMMC Temporary Write Protection: No
Extended CSD rev 1.7 (MMC Unknown)
Boot configuration [PARTITION_CONFIG: 0x00] No boot partition configured.
Boot bus config [177]: 0x00 , width 1bit , Partition config [179]: 0x00.
H/W reset function [RST_N_FUNCTION]: 0x00
Backup saved: 008GE0_2358874537_20160407_1235.extcsd
Done.

[Sniper-Luxor]

شكرا اخى الكريم لعرض تجربتك

[kamel9]

شكرا اخي لعرض الجربه تسلم ايدك

[LYON]

الله ينور عليك
ومبرووك نجاح العملية
ومشكور للعرض

[HaMdY_gsm]

تسلم ايدك شكرا ع عرض التجربة

[الدرفيل]

مشكور على عرض التجربة اخى الكريم

[SaiD_KHeirallaH]

شكر ليك مجهود مميز منك

[PYTHON]

شكرا وبارك الله فيك علي عرض تجربتك والشرح اخي الكريم

[mahrez_tv]

شكرا على التجربة المفيدة

[abd alhamed]

الله ينور ياغالي
