كود:
Inital Boot Ok!
BB_CPU_PID : 6582
BB_CPU_NME : [MediaTek] MT6582_S00
BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000
Processing BROM stage
Settings for BROM configured!
SecCfgVal : 0x00000000
BromVer : 0x00FF
BLVersion : 0x0001
PreLoader : Active [ Boot with PL ]
BootLdrSS : NORMAL with SPRELOADER
Processing DA stage
DA Select done, will use MTK_AllInOne_DA_v5.1612.01.01
Sending and initialize DA ...
Running DA ver.4.2 on BBID : 0x87
NAND Flash : NOT INSTALLED
eMMC Flash : 90014A483447316404860FA27F5970B3
Initialize Memory ...
DRAM already initialized by Preloader
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0x90 , OEM : 014A
[eMMC] : FLASH_INF : [HYNIX] , d1G4
[eMMC] : FLASH_CID : 90014A483447316404860FA27F5970B3
[eMMC] : FLASH_BRT : 0x00200000 , 0x00200000 , 0x00200000
[eMMC] : FLASH_LEN : 0x00000000E7000000
[eMMC] : FLASH_UCP : 3696 MiB [eMMC 4 GiB]
DEV RID : BDFEFEF49A7719E8F1C9CC9B25415BC5
INT RAM : 0x00020000
EXT RAM : 0x20000000
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
[AP] : Initial info read Ok!
Brand : samsung
ProdName : SM-G7102
ProdModel : SM-G7102
Device : SM-G7102
AndroidVer: 4.3
MTKxCPU : MT6582
MTKxPRJ : ALPS.JB5.MP.V1.16
MODEM :
BaseBand : MT6582_S00_MOLY_WR8_W1315_MD_WG_MP_V58_1_wg_n
Done!
كود:
05:12:19 > CPU TYPE:MT6582
05:12:19 > Hardware version:CA01
05:12:19 > Software version:0001
05:12:19 > SecCfgVal :0x00000000
05:12:19 > BromVersion :0xFF
05:12:19 > BLVersion :0x01
>>Boot downloading complete!
05:12:25 > EMMC_ID:0x90014A483447316404860FA27F5970B3
05:12:25 > EMMC_PRODUCT_NAME: SAMSUNG :0x483447316404
05:12:25 > EMMC_BOOT1_SIZE: 0x00200000
05:12:25 > EMMC_BOOT2_SIZE: 0x00200000
05:12:25 > EMMC_PRMB_SIZE: 0x00200000
05:12:25 > EMMC_GP1_SIZE: 0x00000000
05:12:25 > EMMC_GP2_SIZE: 0x00000000
05:12:25 > EMMC_GP3_SIZE: 0x00000000
05:12:25 > EMMC_GP4_SIZE: 0x00000000
05:12:25 > EMMC_USER_SIZE: 0x0E7000000(3.61 G)
05:12:25 >
05:12:32 >
05:12:32 >
05:12:32 > Analysis of system files...
05:12:32 > PRELOADER:>>addr:0x000000 --length:0x1400000
05:12:32 > MBR:>>addr:0x1400000 --length:0x080000
05:12:32 > EBR1:>>addr:0x1480000 --length:0x080000
05:12:32 > PRO_INFO:>>addr:0x1500000 --length:0x300000
05:12:32 > NVRAM:>>addr:0x1800000 --length:0x500000
05:12:32 > PROTECT_F:>>addr:0x1D00000 --length:0xA00000
05:12:32 > PROTECT_S:>>addr:0x2700000 --length:0xA00000
05:12:32 > SECCFG:>>addr:0x3100000 --length:0x020000
05:12:32 > UBOOT:>>addr:0x3120000 --length:0x060000
05:12:32 > BOOTIMG:>>addr:0x3180000 --length:0x600000
05:12:32 > RECOVERY:>>addr:0x3780000 --length:0x600000
05:12:32 > SEC_RO:>>addr:0x3D80000 --length:0x600000
05:12:32 > MISC:>>addr:0x4380000 --length:0x080000
05:12:32 > LOGO:>>addr:0x4400000 --length:0x300000
05:12:32 > EBR2:>>addr:0x4700000 --length:0x080000
05:12:32 > PRIVATE:>>addr:0x4780000 --length:0x020000
05:12:32 > EXPDB:>>addr:0x47A0000 --length:0xA00000
05:12:32 > ANDROID:>>addr:0x51A0000 --length:0x3D400000
05:12:32 > CACHE:>>addr:0x425A0000 --length:0x7E00000
05:12:32 > USRDATA:>>addr:0x4A3A0000 --length:0x40000000
05:12:32 > FAT:>>addr:0x8A3A0000 --length:0x5BD60000
05:12:32 > BMTPOOL:>>addr:0xFFFF00A8 --length:0x000000
05:12:32 >
05:12:32 >
05:12:32 > >>Format addr:0x4A3A0000 --Format length:0x40000000
05:12:32 > Read phone information success.
05:12:37 > brand=samsung
05:12:37 > model=SM-G7102
05:12:37 > Android version=4.3
05:12:37 > MTK platform=MT6582
05:12:37 > Custom build version=20140310_GQ3013C_V1

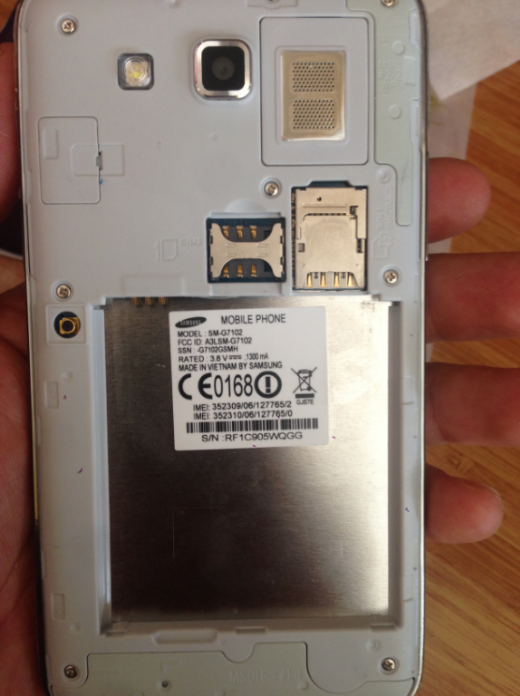

فلاشة جديدة للغراند2 الكوبي G7102 MT6582
