ارجو المساعدة

[sam3222020]

ممكن فلاشة i9060 وهذا الأنفو والجهاز فصل بعد السوفت وير وحتى بعد ارجاع الفلاشة الأصلية المسحوبة لا يشتغل

[sam3222020]

Connected to Phone.
CPU: MT6572 SW:0000 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x00E7000000
Flash Type: EMMC
INT/EXT RAM Size: 0x20000/0x20000000
Reading infr(EMMC)...
PRELOADER BaseAddr:0x0 Size:0x600000
MBR BaseAddr:0x600000 Size:0x80000
EBR1 BaseAddr:0x680000 Size:0x80000
PRO_INFO BaseAddr:0x700000 Size:0x300000
NVRAM BaseAddr:0xA00000 Size:0x500000
PROTECT_F BaseAddr:0xF00000 Size:0xA00000
PROTECT_S BaseAddr:0x1900000 Size:0xA00000
SECCFG BaseAddr:0x2300000 Size:0x20000
UBOOT BaseAddr:0x2320000 Size:0x60000
BOOTIMG BaseAddr:0x2380000 Size:0x600000
RECOVERY BaseAddr:0x2980000 Size:0x600000
SEC_RO BaseAddr:0x2F80000 Size:0x40000
MISC BaseAddr:0x2FC0000 Size:0x80000
LOGO BaseAddr:0x3040000 Size:0x300000
EXPDB BaseAddr:0x3340000 Size:0xA00000
ANDROID BaseAddr:0x3D40000 Size:0x1E000000
CACHE BaseAddr:0x21D40000 Size:0x1B00000
USRDATA BaseAddr:0x23840000 Size:0x19000000
FAT BaseAddr:0x3C840000 Size:0xA98C0000
BMTPOOL BaseAddr:0xFFFF0000 Size:0x0
>>Done.

[almurtee]

تم النقل لقسم طلب الفلاشات
يمكنك المتابعة هنا

[™MOHAMED]

اعمل فورمات كامل للجهاز ثم رجع الباكب ممكن اعرف صيغه الباكب

[sam3222020]

عملت قورمات ورجعت الباكب ولم يشتغل الجهار

[sam3222020]

ارجو الافادة

[sam3222020]

bin عن طريق بوكس miracle

[™MOHAMED]

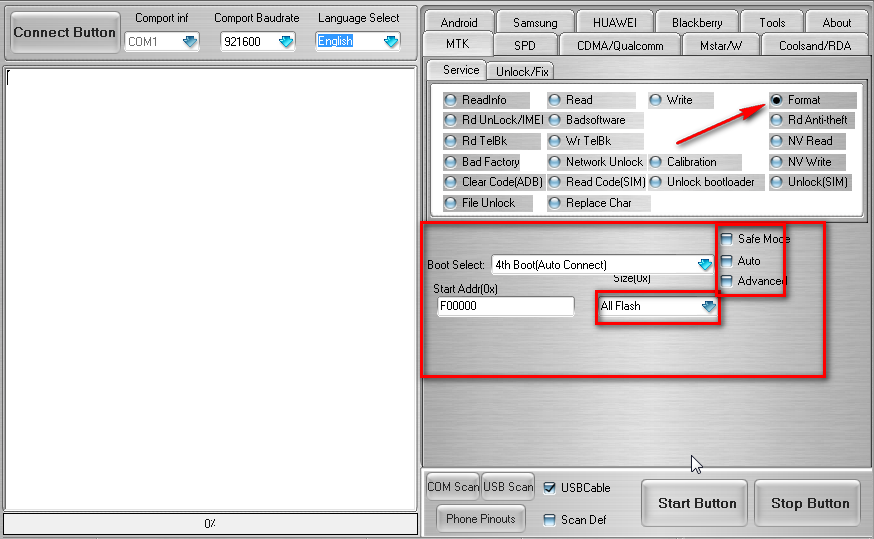

جرب فورمات علي برنامج Sp Flash Tool او من بوكس الميركل اختر كما باصوره

[sam3222020]

اخي بعد التجربة نفس المشكلة وهذا الانفو فورمات كامل وتفليش Welcome to use Miracle Box (World's First Fuzzy Logic Based Tool)
Update:16-03-19
Firmware Version:1.16
Connected OK.
Fuzzy Logic Method is very safe and reliable !
License Expire Date: 2016-11-07
Check Authentication...
Check the new version.
______________________________


Miracle Box Version 2.32
Release: 27th April 2016
______________________________
# So Many World's First Features.
______________________________
(Authorized Distributors and Resellers - GSM-Forum)
Falcon Box : HTC Pack Coming
__________[FACEBOOK]__________
http://facebook.com/amiracleteam
___________SUPPORT]___________
http://support.amiracleteam.com
______________________________
Definition Applied
1. Power Off Phone , Remove Battery, Insert Battery Back
2. Insert USB cable. In some cases Required Hold BootKey
3. Use Miracle Boot Key In cases Boot key not Find
4. Battery Should be Charged more then 50%
Definition Applied
you can Set Formatting Addr
Waiting for USB Port...
Set MTK USB Port (COM109)
Please Hold "ON" to connect with the phone...
Connected to Phone.
CPU: MT6572 SW:0000 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x00E7000000
Flash Type: EMMC
INT/EXT RAM Size: 0x20000/0x20000000
Formatting Nand Flash...
Format Satrt Addr??0x600000, Size: 0x3C240000
Format nand OK(Android Need to wait a few minutes the phone is switched)
MT65xx ANDROID EMMC File:
Definition Applied
1. Power Off Phone , Remove Battery, Insert Battery Back
2. Insert USB cable. In some cases Required Hold BootKey
3. Use Miracle Boot Key In cases Boot key not Find
4. Battery Should be Charged more then 50%
Waiting for USB Port...
The File Information:
N/A
Set MTK USB Port (COM109)
Please Hold "ON" to connect with the phone...
Connected to Phone.
CPU: MT6572 SW:0000 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x00E7000000
Flash Type: EMMC
INT/EXT RAM Size: 0x20000/0x20000000
Waiting for USB Port...
Set DA USB VCOM Port (COM395)
Writing(Nand/eMMC)...
Writing MBR
Writing EBR1
Writing PRO_INFO
Writing NVRAM
Writing PROTECT_F
Writing PROTECT_S
Writing SECCFG
Writing UBOOT
Writing BOOTIMG
Writing RECOVERY
Writing SEC_RO
Writing MISC
Writing LOGO
Writing EXPDB
Writing ANDROID
Writing CACHE
Writing USRDATA
Writing FAT
Checking Sum...
Write Done.
>>Total time: 15 mins 0 s

[sam3222020]

ارجو المساعدة
