3فلاشات s7562 برقم البورده

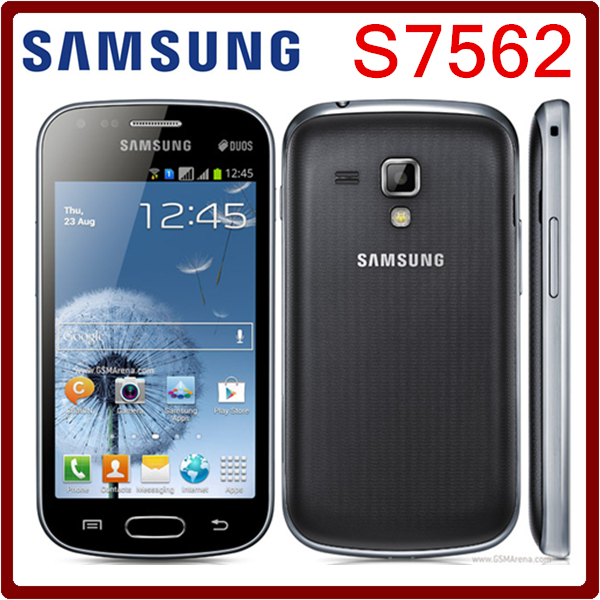

اعزائي اعضاء الجيم فلاش اقدم لكم اليوم 3 فلاشات samsung s7562
برقم البورده
واود ان اعتذر شخصيا عن التاخر في الرفع نظرا لضعف النت
وبأذن الله كل كم يوم حيتم نشر مجموعه من الفلاشات
1
GT-S7562_ MT6575_862_m_v3.0
كود:{ PRELOADER 0x0 } DSP_BL 0x40000 { } MBR 0x600000 { } EBR1 0x604000 { } __NODL_PMT 0x660000 { } __NODL_NVRAM 0xA60000 { } __NODL_SECCFG 0xD60000 { } UBOOT 0xD80000 { } BOOTIMG 0xDE0000 { } RECOVERY 0x13E0000 { } SEC_RO 0x19E0000 { } __NODL_MISC 0x1FE0000 { } LOGO 0x2040000 { } __NODL_EXPDB 0x2340000 { } EBR2 0x23E0000 { } ANDROID 0x23E4000 { } CACHE 0x1B3E4000 { } USRDATA 0x203E4000 { } __NODL_FAT 0x946E4000 { } __NODL_BMTPOOL 0xFFFF0000 { }
2
GT-S7562_MT6572 T800-MBPCB-13 T800_MBPCB_v1.31226
كود:############################################################################################################ # # General Setting # ############################################################################################################ - general: MTK_PLATFORM_CFG info: - config_version: V1.1.1 platform: MT6572 project: mtk_android storage: EMMC boot_channel: MSDC_0 block_size: 0x20000 ############################################################################################################ # # Layout Setting # ############################################################################################################ - partition_index: SYS0 partition_name: PRELOADER file_name: preloader.bin is_download: true type: SV5_BL_BIN linear_start_addr: 0x0 physical_start_addr: 0x0 partition_size: 0x880000 region: EMMC_BOOT_1 storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: BOOTLOADER reserve: 0x00 - partition_index: SYS1 partition_name: MBR file_name: MBR.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x880000 physical_start_addr: 0x0 partition_size: 0x80000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS2 partition_name: EBR1 file_name: EBR1.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x900000 physical_start_addr: 0x0 partition_size: 0x80000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS3 partition_name: PRO_INFO file_name: NONE is_download: false type: NONE linear_start_addr: 0x980000 physical_start_addr: 0x0 partition_size: 0x300000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: PROTECTED reserve: 0x00 - partition_index: SYS4 partition_name: NVRAM file_name: nvram.bin is_download: true type: NORMAL_ROM linear_start_addr: 0xC80000 physical_start_addr: 0x0 partition_size: 0x500000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS5 partition_name: PROTECT_F file_name: protect_f.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x1180000 physical_start_addr: 0x0 partition_size: 0xA00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS6 partition_name: PROTECT_S file_name: protect_s.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x1B80000 physical_start_addr: 0x0 partition_size: 0xA00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS7 partition_name: SECCFG file_name: NONE is_download: false type: NONE linear_start_addr: 0x2580000 physical_start_addr: 0x0 partition_size: 0x20000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS8 partition_name: UBOOT file_name: uboot.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x25A0000 physical_start_addr: 0x0 partition_size: 0x60000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS9 partition_name: BOOTIMG file_name: bootimg.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x2600000 physical_start_addr: 0x0 partition_size: 0x600000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS10 partition_name: RECOVERY file_name: recovery.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x2C00000 physical_start_addr: 0x0 partition_size: 0x600000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS11 partition_name: SEC_RO file_name: secro.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x3200000 physical_start_addr: 0x0 partition_size: 0x40000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS12 partition_name: MISC file_name: misc.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x3240000 physical_start_addr: 0x0 partition_size: 0x80000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS13 partition_name: LOGO file_name: logo.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x32C0000 physical_start_addr: 0x0 partition_size: 0x300000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS14 partition_name: EXPDB file_name: NONE is_download: false type: NONE linear_start_addr: 0x35C0000 physical_start_addr: 0x0 partition_size: 0xA00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS15 partition_name: ANDROID file_name: system.bin is_download: true type: YAFFS_IMG linear_start_addr: 0x3FC0000 physical_start_addr: 0x0 partition_size: 0x28A00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS16 partition_name: CACHE file_name: cache.bin is_download: true type: YAFFS_IMG linear_start_addr: 0x2C9C0000 physical_start_addr: 0x0 partition_size: 0x17800000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS17 partition_name: USRDATA file_name: userdata.bin is_download: true type: YAFFS_IMG linear_start_addr: 0x441C0000 physical_start_addr: 0x0 partition_size: 0x52C00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS18 partition_name: FAT file_name: fat.bin is_download: true type: YAFFS_IMG linear_start_addr: 0x96DC0000 physical_start_addr: 0x0 partition_size: 0x541C0000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS19 partition_name: BMTPOOL file_name: NONE is_download: false type: NONE linear_start_addr: 0xFFFF00A8 physical_start_addr: 0x0 partition_size: 0x1500000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: false is_reserved: true operation_type: RESERVED reserve: 0x00
3
s7562_mt6572_v1.3كود:# ############################################################################################################ # General Setting # ############################################################################################################ - general: MTK_PLATFORM_CFG info: - config_version: V1.1.1 platform: MT6572 project: MTDTtest storage: NAND boot_channel: NONE block_size: 0x40000 ############################################################################################################ # # Layout Setting # ############################################################################################################ - partition_index: SYS0 partition_name: PRELOADER file_name: preloader.bin is_download: true type: SV5_BL_BIN linear_start_addr: 0x0 physical_start_addr: 0x0 partition_size: 0x100000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: BOOTLOADERS reserve: 0x00 - partition_index: SYS1 partition_name: PRO_INFO file_name: NONE is_download: false type: NONE linear_start_addr: 0x100000 physical_start_addr: 0x0 partition_size: 0x100000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: PROTECTED reserve: 0x00 - partition_index: SYS2 partition_name: NVRAM file_name: NONE is_download: false type: NONE linear_start_addr: 0x200000 physical_start_addr: 0x0 partition_size: 0x300000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: BINREGION reserve: 0x00 - partition_index: SYS3 partition_name: PROTECT_F file_name: NONE is_download: false type: NONE linear_start_addr: 0x500000 physical_start_addr: 0x0 partition_size: 0x300000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: PROTECTED reserve: 0x00 - partition_index: SYS4 partition_name: PROTECT_S file_name: NONE is_download: false type: NONE linear_start_addr: 0x800000 physical_start_addr: 0x0 partition_size: 0x300000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: PROTECTED reserve: 0x00 - partition_index: SYS5 partition_name: SECCFG file_name: NONE is_download: false type: NONE linear_start_addr: 0xB00000 physical_start_addr: 0x0 partition_size: 0x40000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS6 partition_name: UBOOT file_name: lk.bin is_download: true type: NORMAL_ROM linear_start_addr: 0xB40000 physical_start_addr: 0x0 partition_size: 0x80000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS7 partition_name: BOOTIMG file_name: boot.img is_download: true type: NORMAL_ROM linear_start_addr: 0xBC0000 physical_start_addr: 0x0 partition_size: 0x600000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS8 partition_name: RECOVERY file_name: recovery.img is_download: true type: NORMAL_ROM linear_start_addr: 0x11C0000 physical_start_addr: 0x0 partition_size: 0x600000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS9 partition_name: SEC_RO file_name: secro.img is_download: true type: NORMAL_ROM linear_start_addr: 0x17C0000 physical_start_addr: 0x0 partition_size: 0x40000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS10 partition_name: MISC file_name: NONE is_download: false type: NONE linear_start_addr: 0x1800000 physical_start_addr: 0x0 partition_size: 0xC0000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS11 partition_name: LOGO file_name: logo.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x18C0000 physical_start_addr: 0x0 partition_size: 0x100000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS12 partition_name: EXPDB file_name: NONE is_download: false type: NONE linear_start_addr: 0x19C0000 physical_start_addr: 0x0 partition_size: 0x200000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS13 partition_name: FAT file_name: NONE is_download: false type: UBI_IMG linear_start_addr: 0x1BC0000 physical_start_addr: 0x0 partition_size: 0x1E00000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS14 partition_name: ANDROID file_name: system.img is_download: true type: UBI_IMG linear_start_addr: 0x39C0000 physical_start_addr: 0x0 partition_size: 0x14000000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS15 partition_name: CACHE file_name: cache.img is_download: false type: NONE linear_start_addr: 0x179C0000 physical_start_addr: 0x0 partition_size: 0x700000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS16 partition_name: USRDATA file_name: data.img is_download: true type: UBI_IMG linear_start_addr: 0x180C0000 physical_start_addr: 0x0 partition_size: 0x6AC0000 region: NONE storage: HW_STORAGE_NAND boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS17 partition_name: BMTPOOL file_name: NONE is_download: false type: NONE linear_start_addr: 0xFFFF0050 physical_start_addr: 0x0 partition_size: 0x1400000 region: NONE storage: HW_STORAGE_NAND boundary_check: false is_reserved: true operation_type: RESERVED reserve: 0x00
نلتقي مع مجموعه اخري
تقبلوا تحياتي:diamond gsm
