حصري الفلاشة النادرة لتابليت Haier_G700 مسحوبة على العملاق CM2

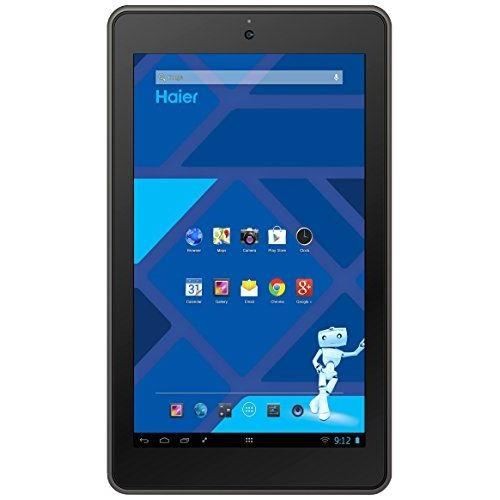

اقدم لكم اليوم فلاشة التاب الانيق
( Haier G700 MT6572 )
الفلاشة نظيفة ومجربة وهي من رفعي مسحوبة بالعملاق CM2
الفلاشة بصيغة Scatter File ويمكن التفليش
بالـ Sp Flash Tools او البكسات الأخرى
انفو لفلاشة على دونجل CM2
MT6572__Haier__Haier_G700__G700__4.4.2__ALPS.KK1.MP7.V1.44
كود:Wait for phone... Phone found! [ 11 ] Sync... Inital Boot Ok! BB_CPU_PID : 6572 BB_CPU_NME : [MediaTek] MT6572_S00 BB_CPU_EXT : 0xCA01 , 0x8A00 , 0x0000 Processing BROM stage Settings for BROM configured! SecCfgVal : 0x00000000 BromVer : 0x00FF BLVersion : 0x0001 PreLoader : Active [ Boot with PL ] BootLdrSS : NORMAL with SPRELOADER Processing DA stage DA Select done, will use MTK_AllInOne_DA_v5.1552.01.01 Sending and initialize DA ... Running DA ver.4.2 on BBID : 0x88 NAND Flash : NOT INSTALLED eMMC Flash : 8801034E4361726420351EE68E5672A1 Initialize Memory ... DRAM already initialized by Preloader eMMC FlashIC initialized [eMMC] : FLASH_VEN : 0x88 , OEM : 0103 [eMMC] : FLASH_INF : [FORESEE] , draC [eMMC] : FLASH_CID : 8801034E4361726420351EE68E5672A1 [eMMC] : FLASH_BRT : 0x00400000 , 0x00400000 , 0x00020000 [eMMC] : FLASH_LEN : 0x00000001CE100000 [eMMC] : FLASH_UCP : 7393 MiB [eMMC 8 GiB] DEV RID : AD360D3F6C9701F87AB50884F15BBEF2 INT RAM : 0x00020000 EXT RAM : 0x20000000 BOOT TYPE : EMMC_FLASH_BOOT SOC VERIFY : C1 Boot Ok! Reading Flash Content now ... Brand : Haier ProdName : G700 ProdModel : Haier G700 Device : G700 AndroidVer: 4.4.2 MTKxCPU : MT6572 MTKxPRJ : ALPS.KK1.MP7.V1.44
انفو ملف سكاتر
كود:# General Setting# ####################################-=CHINESE II MIRACLE=-##################################################### - general: MTK_PLATFORM_CFG info: - config_version: V1.1.1 platform: MT6572 project: c706 storage: EMMC boot_channel: MSDC_0 block_size: 0x20000 ############################################################################################################ # # Layout Setting # ############################################################################################################ - partition_index: SYS0 partition_name: PRELOADER file_name: preloader_c706.bin is_download: true type: SV5_BL_BIN linear_start_addr: 0x0 physical_start_addr: 0x0 partition_size: 0xA00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: BOOTLOADERS reserve: 0x00 - partition_index: SYS1 partition_name: MBR file_name: MBR is_download: true type: NORMAL_ROM linear_start_addr: 0xA00000 physical_start_addr: 0xA00000 partition_size: 0x80000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS2 partition_name: EBR1 file_name: EBR1 is_download: true type: NORMAL_ROM linear_start_addr: 0xA80000 physical_start_addr: 0xA80000 partition_size: 0x80000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS3 partition_name: PRO_INFO file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0xB00000 physical_start_addr: 0xB00000 partition_size: 0x300000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: PROTECTED reserve: 0x00 - partition_index: SYS4 partition_name: NVRAM file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0xE00000 physical_start_addr: 0xE00000 partition_size: 0x500000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: BINREGION reserve: 0x00 - partition_index: SYS5 partition_name: PROTECT_F file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0x1300000 physical_start_addr: 0x1300000 partition_size: 0xA00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: PROTECTED reserve: 0x00 - partition_index: SYS6 partition_name: PROTECT_S file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0x1D00000 physical_start_addr: 0x1D00000 partition_size: 0xA00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: PROTECTED reserve: 0x00 - partition_index: SYS7 partition_name: SECCFG file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0x2700000 physical_start_addr: 0x2700000 partition_size: 0x20000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS8 partition_name: UBOOT file_name: lk.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x2720000 physical_start_addr: 0x2720000 partition_size: 0x60000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS9 partition_name: BOOTIMG file_name: boot.img is_download: true type: NORMAL_ROM linear_start_addr: 0x2780000 physical_start_addr: 0x2780000 partition_size: 0x600000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS10 partition_name: RECOVERY file_name: recovery.img is_download: true type: NORMAL_ROM linear_start_addr: 0x2D80000 physical_start_addr: 0x2D80000 partition_size: 0x600000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS11 partition_name: SEC_RO file_name: secro.img is_download: true type: NORMAL_ROM linear_start_addr: 0x3380000 physical_start_addr: 0x3380000 partition_size: 0x40000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS12 partition_name: MISC file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0x33C0000 physical_start_addr: 0x33C0000 partition_size: 0x80000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS13 partition_name: LOGO file_name: logo.bin is_download: true type: NORMAL_ROM linear_start_addr: 0x3440000 physical_start_addr: 0x3440000 partition_size: 0x300000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS14 partition_name: EXPDB file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0x3740000 physical_start_addr: 0x3740000 partition_size: 0xA00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS15 partition_name: ANDROID file_name: system.img is_download: true type: EXT4_IMG linear_start_addr: 0x4140000 physical_start_addr: 0x4140000 partition_size: 0x46400000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS16 partition_name: CACHE file_name: cache.img is_download: true type: EXT4_IMG linear_start_addr: 0x4A540000 physical_start_addr: 0x4A540000 partition_size: 0xE200000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS17 partition_name: USRDATA file_name: userdata.img is_download: true type: EXT4_IMG linear_start_addr: 0x58740000 physical_start_addr: 0x58740000 partition_size: 0x52C00000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: UPDATE reserve: 0x00 - partition_index: SYS18 partition_name: FAT file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0xAB340000 physical_start_addr: 0xAB340000 partition_size: 0x1220E0000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: true is_reserved: false operation_type: INVISIBLE reserve: 0x00 - partition_index: SYS19 partition_name: BMTPOOL file_name: NONE is_download: false type: NORMAL_ROM linear_start_addr: 0xFFFF00A8 physical_start_addr: 0xFFFF00A8 partition_size: 0x1500000 region: EMMC_USER storage: HW_STORAGE_EMMC boundary_check: false is_reserved: true operation_type: RESERVED reserve: 0x00
واخيرا رابط تحميل الفلاشة
باسورد فك ضغط الفلاشة
PASS
كود:www.gem-flash.com
والى هنا انتهى موضوع اليوم اتمنى ان ينال اعجابكم
