بسم الله الرحمن الرحيم

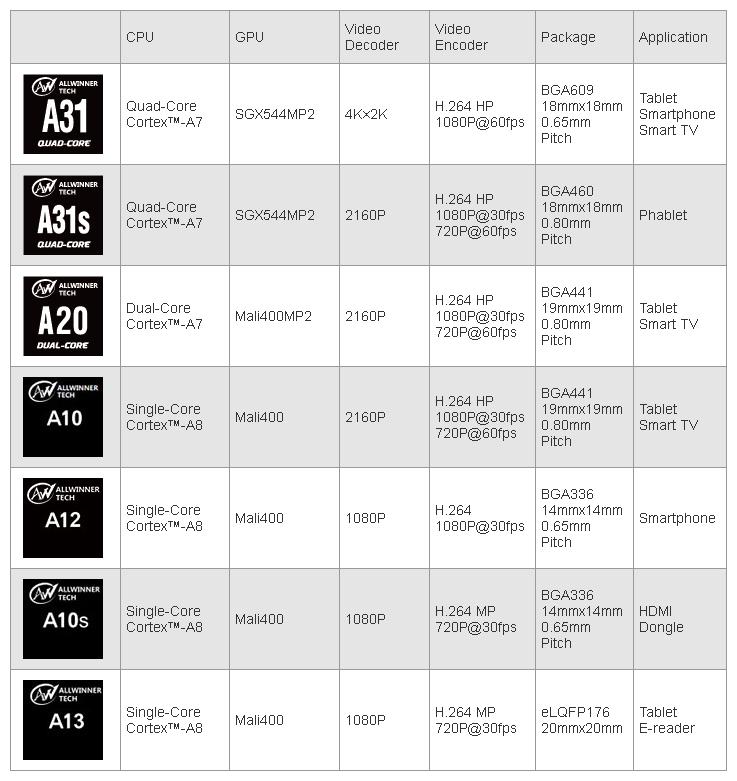

المعالجات
A31, A31s, A20, A10s, A10, and A13,

اليكم مواصفات الخاصة بهم والمشغلات

- منقول من الموقع الرسمى

مع تحياتى :احمد عبقرينو

[احمد عبقرينو]

Quad-core A31

FEATURES

Quad-Core Mobile Application Processor

CPU	ARM® Cortex™-A7 Quad-Core 256KB L1 Cache 1MB L2 Cache
GPU	PowerVR™ SGX544MP2 Complies with OpenGL ES2.0, OpenCL 1.x, DX 9_3
Video	UHD H.264 4Kx2K video decoding Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,etc. H.264 High Profile 1080P@60fps encoding 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported 3840x1080@30fps 3D encoding Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocol
Display	Dual-Channel LVDS 1920x1080@60fps 4 lanes MIPI DSI 1920x1200@60fps Dual-channel RGB/CPU LCD 2048x1536@60fps Integrated HDMI1.4 1080p@60fps
Camera	Integrated Parallel & MIPI I/F sensor Integrated powerful ISP, supporting Raw Data CMOS sensor Supports 5M/8M/12M CMOS sensor Supports 8/10/12-bit YUV/Bayer sensor
HawkView™ ISP	Static and dynamic defect pixel correction and lens shading correction Anisotropic non-linear Bayer interpolation with false color suppression Programmable color correction, dynamic range compression and contrast enhancement Advanced spatial de-noise filter AE/AF/AWB Anti-flick detection
Memory	Dual-Channel LPDDR2/DDR3/DDR3L Controller Dual-Channel NAND FLASH Controller with 64-bit ECC
PMIC	Specially designed PMIC AXP221 21-channel power output and 2.2A Flash charging Comply with USB 3.0 power supply standard
Audio	Integrated HI-FI 100dB Audio Codec Three integrated differential analog mic amplifiers for headset and phone One digital mic interface with software noise cancellation
OS	Supports Android 4.1/4.2 and above Compatible with Microsoft Windows 8

[احمد عبقرينو]

•

•

• Quad-core A31s

FEATURES

Quad-core phablet processor

CPU	ARM® Cortex™-A7 Quad-Core 256KB L1 Cache 1MB L2 Cache
GPU	PowerVR™ SGX544MP2 Complies with OpenGL ES 2.0, OpenCL 1.x, DX 9_3
Audio	Two sets of I2S/PCM interfaces for Baseband and Bluetooth Two integrated differential analog MIC for headset and phone Integrated digital MIC interface Dedicated headphone/speaker/receiver outputs Two-channel audio ADC with 96dBA SNR Two-channel audio DAC with 100dBA SNR
Video	UHD H.264 2160p video decoding Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,etc. H.264 High Profile 1080p@30fps or 720p@60fps encoding 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported 3840x1080@30fps 3D encoding Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols
Display	Integrated LVDS/RGB/CPU LCD interface 1280x800 resolution Integrated HDMI1.4 1920x1080@60fps
Camera	Supports 0.3M/1.3M/2M/5M CMOS sensor Supports 8/10/12-bit YUV/Bayer sensor
HawkView™ ISP	Static and dynamic defect pixel correction, and lens shading correction Anisotropic non-linear Bayer interpolation with false color suppression Programmable color correction, dynamic range compression and contrast enhancement Advanced spatial de-noise filter AE/AF/AWB Anti-flick detection
Memory	32-bit DDR3/DDR3L/LPDDR2 controller 8-bit NAND Flash controller with 64-bit ECC
PMIC	PMIC AXP221s 21-CH power output and 2.2A Flash charging Comply with USB 3.0 power supply standard
OS	Supports Android 4.1/4.2 and above Compatible with Microsoft Windows 8

[احمد عبقرينو]

Dual-core A20






FEATURES

CPU	ARM® Cortex™-A7 Dual-Core
GPU	ARM® Mali400MP2 Complies with OpenGL ES 2.0/1.1
Video	HD H.264 2160p video decoding Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg, etc. H.264 High Profile 1080p@30fps or 720p@60fps encoding 3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP,HLS,RTMP,MMS streaming media protocols
Display	Supports multi-channel HD display Integrated HDMI 1.4 transmitter with HDCP support CPU/RGB/LVDS LCD interface Supports CVBS/YPbPr/VGA Integrated TV decoder
Camera	Integrated parallel 8-bit I/F YUV sensor Integrated 24-bit parallel YUV 444 I/F Supports 5M CMOS sensor Supports dual sensors
Memory	DDR2/DDR3/DDR3L controller NAND Flash controller with 64-bit ECC
Audio	Integrated HI-FI 100dB Audio Codec Dual analog mic amplifiers
OS	Android 4.1/4.2 and above

[احمد عبقرينو]

A10s

CPU	ARM Cortex™-A8 32KB I-Cache 32KB D-Cache 256KB L2 Cache
GPU	ARM Mali-400
Video	HD Video decoding up to 1920×1080@30fps Support various video decoding formats, including H.264/H.263, VC1, MPEG 4/2/1, Xvid, VP6/VP8, AVS etc. H.264 HP video encoding up to 1920×1080@30fps
Audio	Integrated audio codec MIC/FM/LINEIN input
HDMI	HDMI 1.4 1080P output
Memory	16/32-bit DDR2/DDR3- Memory capacity up to 1G Bytes MLC/TLC/SLC/EF-NAND- 64-bit ECC - Support NAND of 4xnm, 3xnm, 2xnm, etc - Support NAND of Samsung, Toshiba, Hynix, etc
Display	Multi-channel HD display Integrated HDMI 1.4 YPbPr, CVBS, VGA Multiple LCD interfaces, including CPU, RGB, LVDS up to Full HD
Boot Devices	NAND Flash SPI NOR Flash SD Card USB
Connectivity	USB2.0 OTG USB2.0 HOST（OHCI/EHCI） SD Card V3.0, eMMC V4.2 SPI, TWI and UART TS Port EMAC CSI IIS
Package	BGA336 14mm ×14mm
OS	Android 4.0.4 or up
Application	HDMI Dongle Android Box

[احمد عبقرينو]

A13

FEATURES

CPU	ARM Cortex™-A8 32KB I-Cache 32KB D-Cache 256KB L2 Cache
GPU	ARM Mali-400
Video	HD video decoding up to 1920 ×1080@30fps Support various video decoding formats, including H.264, H.263, VC1, MPEG1/2/4, XVID, VP6/8, AVS, etc H.264 HP video encoding up to 1920×1080@30fps
Display	CPU/ RGB LCD interface
Memory	16-bit DDR2/DDR3 - Memory capacity up to 512MB MLC/TLC/SLC/EF-NAND - MLC/TLC/SLC/EF-NAND - Support NAND of 5xnm, 4xnm, 3xnm, 2xnm, etc - Support NADN of Samsung, Toshiba, Hynix, etc
Boot Devices	NAND Flash SPI NOR Flash SD Card USB
TP	4-wire Resistive TP interface 2 points and gesture detection
PMIC	15~20% lower than competitors Support smart backlight, capable of auto backlight adjustment ac -cording to the image display
Package	eLQFP176
OS	Android 4.2 or up
Application	7” Tablet 8” Tablet

[احمد عبقرينو]

• A10

FEATURES

CPU	ARM Cortex™-A8 32KB I-Cache 32KB D-Cache 256KB L2 Cache
GPU	ARM Mali-400
Video	UHD 2160P video decoding 3D video decoding Support various video decoding formats, including VP8, AVS, H. 264 MVC, VC-1, MPEG-1,2,4, etc H.264 HP video encoding up to 1080p @ 30 fps or dual-channel 720p @ 30 fps
Display	Multi-channel HD display Integrated HDMI 1.4 YPbPr, CVBS, VGA Multiple LCD interfaces, including CPU, RGB, LVDS up to Full HD
Memory	32-bit DDR2/DDR3 Memory capacity up to 16G bits SLC/MLC/TLC/DDR NAND - 8 flash chips, 64-bit ECC - Memory capacity up to 64GB - Support NAND of 5xnm, 4xnm, 3xnm, 2xnm, etc - Support NAND of Samsung, Toshiba, Hynix, etc
Boot Devices	NAND Flash SPI NOR Flash SD Card USB
OS	Android 4.2 or up
