فلاشة GT-I9500
الســـــلام عليـــــــكم
مطلوب فلاشه سامسونج S4 الكوبي والفلاشه تحمل بيانات
Analysis of USB port,Please insert phone USB cable.
Connecting...
CPU TYPE:MT6572
Hardware version:CA01
Software version:0000
SecCfgVal :0x00000000
BromVersion :0x05
BLVersion :0xFE
Boot downloading complete!
EMMC_ID:0x1501004E35585A4D42011CA7510811DB
EMMC_PRODUCT_NAME: SAMSUNG :0x4E35585A4D42
EMMC_BOOT1_SIZE: 0x00400000
EMMC_BOOT2_SIZE: 0x00400000
EMMC_PRMB_SIZE: 0x00080000
EMMC_GP1_SIZE: 0x00000000
EMMC_GP2_SIZE: 0x00000000
EMMC_GP3_SIZE: 0x00000000
EMMC_GP4_SIZE: 0x00000000
EMMC_USER_SIZE: 0x0E9000000(3.64 G)
Analysis of system files...
PRELOADER: addr:0x000000 --length:0x040000
DSP_BL: addr:0x040000 --length:0xFFFC0000
MBR: addr:0x000000 --length:0x004000
EBR1: addr:0x004000 --length:0x004000
_PMT: addr:0x008000 --length:0x400000
__NODL_NVRAM: addr:0x408000 --length:0x500000
__NODL_SECCFG: addr:0x908000 --length:0x020000
UBOOT: addr:0x928000 --length:0x060000
BOOTIMG: addr:0x988000 --length:0x600000
RECOVERY: addr:0xF88000 --length:0x600000
SEC_RO: addr:0x1588000 --length:0x600000
__NODL_MISC: addr:0x1B88000 --length:0x060000
LOGO: addr:0x1BE8000 --length:0x300000
__NODL_EXPDB: addr:0x1EE8000 --length:0x200000
ANDROID: addr:0x20E8000 --length:0x20100000
__NODL_CACHE: addr:0x221E8000 --length:0x20100000
USRDATA: addr:0x422E8000 --length:0x20100000
__NODL_FAT: addr:0x623E8000 --length:0x85718000
__NODL_BMTPOOL: addr:0xFF9F00A8 --length:0x000000
Format addr:0x422E8000 --Format length:0x20100000
>>Read phone information success.

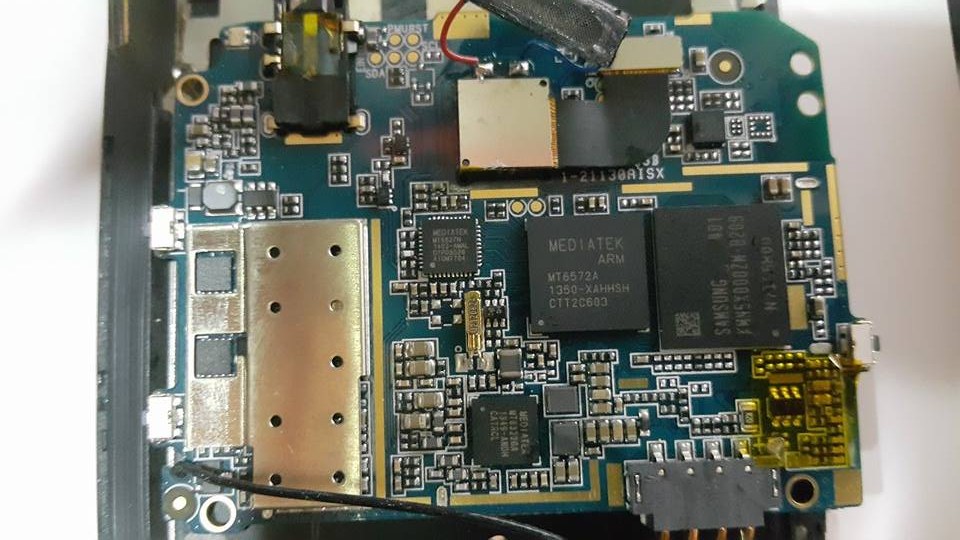

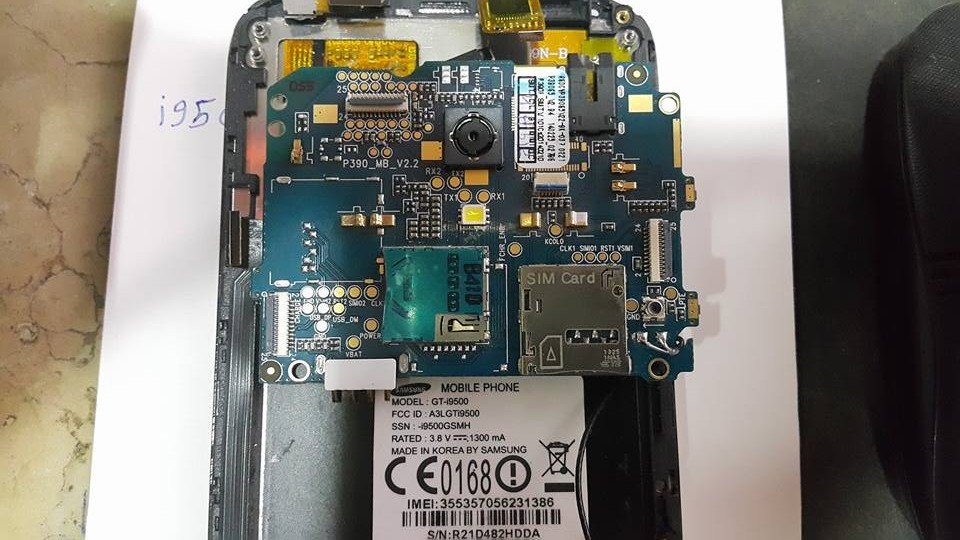

ودى صورة للبورد من الداخل ومعلومات الـ PCB
