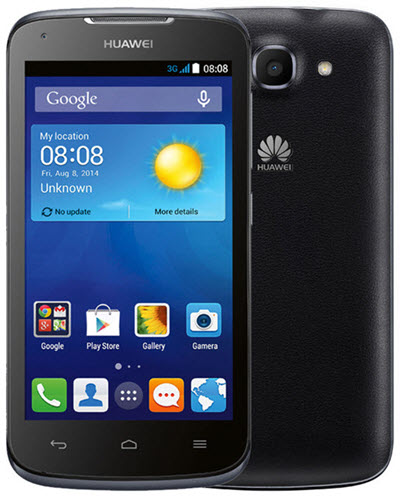

فلاشة عربية للهاتف Huawei_Y520-U22_MT6572 مسحوبة بالـ Miracle II
أحبابنا أعضاء وزوار منتديات الجيم فلاش
::: أسعد الله أوقاتكم بكل خير :::
ويستمر العطاء إن شاء الله
اليوم فلاشة عربية جديده للهاتف Huawei_Y520-U22_MT6572
الفلاشة نظيفة ومجربة وهي من رفعي مسحوبة بالعملاق
Chinese Miracle-II
بيانات الفلاشة
صيغة الفلاشة Scatter File
يمكن التفليش بالـ Sp Flash Tool
والبوكسات الأخرى
حجم الفلاشة 482 MB
الفلاشة عربية إصدار الاندرويد 4.4.2
صور لبيانات وشكل الفلاشة من الهاتف
انفو للفلاشة على الميراكل ( 1 )
كود PHP:Connected to Phone.
CPU: MT6572 SW:0000 Ver: CA01
Downloading Boot8 ...
EMMC Size: 0x00EC000000
Flash Type: EMMC
INT/EXT RAM Size: 0x0+0x0
Reading infr(EMMC)...
PRELOADER BaseAddr:0x0 Size:0xC00000
MBR BaseAddr:0xC00000 Size:0x80000
EBR1 BaseAddr:0xC80000 Size:0x80000
PRO_INFO BaseAddr:0xD00000 Size:0x300000
NVRAM BaseAddr:0x1000000 Size:0x500000
PROTECT_F BaseAddr:0x1500000 Size:0xA00000
PROTECT_S BaseAddr:0x1F00000 Size:0xA00000
SECCFG BaseAddr:0x2900000 Size:0x20000
UBOOT BaseAddr:0x2920000 Size:0x60000
BOOTIMG BaseAddr:0x2980000 Size:0x600000
RECOVERY BaseAddr:0x2F80000 Size:0x600000
SEC_RO BaseAddr:0x3580000 Size:0x40000
MISC BaseAddr:0x35C0000 Size:0x80000
LOGO BaseAddr:0x3640000 Size:0x300000
EXPDB BaseAddr:0x3940000 Size:0xA00000
ROOTM BaseAddr:0x4340000 Size:0x400000
ANDROID BaseAddr:0x4740000 Size:0x40000000
CACHE BaseAddr:0x44740000 Size:0xE200000
USRDATA BaseAddr:0x52940000 Size:0x98640000
BMTPOOL BaseAddr:0xFFFF0000 Size:0x0
>>Done.
انفو للفلاشة على الميراكل ( 2 )
كود PHP:Operation : Check / Read Info [ v1.37 ]
1. Power Off Phone , Remove battery , Insert back
2. Insert USB cable. In some cases require hold BootKey
Wait for phone...
Phone found! [ 8 ]
Sync...
Inital regs read done
Boot Info :
BB_CPU_ID : 6572
BB_CPU_HW : CA01
BB_CPU_SW : 8A00
BB_CPU_SB : 0000
BB_CPU_NM : [MediaTek] MT6572_S00
Processing BROM stage
BLVersion : 0x01
SecCfgVal : 0x00000000
BromVersion : 0xFF
BLVersion : 0x01
Preloader Status : Alive
Processing DA stage
DA Select done , sending
DA Ver : MTK_AllInOne_DA_v7.1533.03
NAND_ID : 00000000000000000000000000000000
eMMC_ID : 110100303034473930511ECFD409B11D
DA Stat : v4.2 on BBID : 0x88
DA Sent. Configure setting now ...
DA started successuflly
eMMC FlashIC initialized
[eMMC] : FLASH_VEN : 0011 , OEM : 0100
[eMMC] : FLASH_INF : [TOSHIBA] , 09G40
[eMMC] : FLASH_CID : 110100303034473930511ECFD409B11D
[eMMC] : FLASH_EXT : 0x00200000 , 0x00200000 , 0x00080000
[eMMC] : FLASH_LEN : 0x00000000EC000000
[eMMC] : FLASH_UCP : 3776 MiB
INT RAM : 0x00020000
EXT RAM : 0x20000000
BOOT TYPE : EMMC_FLASH_BOOT
SOC VERIFY : C1
Boot Ok!
[AP] : Initial info read Ok!
Brand : HUAWEI
ProdName : Y520-U22
ProdModel : HUAWEI Y520-U22
Device : HWY520-U
AndroidVer: 4.4.2
MTKxCPU : MT6572
MTKxPRJ : ALPS.KK1.MP6.V1
MODEM :
BaseBand : MT6572_S00_MOLY_WR8_W1315_MD_WG_MP_V36_F2_P9_1_wg_n
EXTRA :
LCD [0] : otm8018b_dsi_vdo
LCD [1] : otm8018b_dsi_vdo_dijing
LCD [2] : otm8018b_dsi_vdo_dijing_9806E
LCD [3] : otm8018b_dsi_vdo_9806E
LCD [4] : otm8018b_dsi_vdo_cs_9806E
LCD [5] : otm8018b_dsi_vdo_lcm_drv_9806E_ii
LCD [6] : otm9806E_dsi_vdo_txd_hsd
LCD Res : 854x480
TOUCH [0] : msg2133a
CAM [0] : ov5645_qt_mipi_yuv
CAM [1] : ov5645_mipi_yuv
CAM [2] : gc0312_yuv
CAM [3] : hi708_yuv
CAM [4] : hi541_mipi_yuv
MODEM : ckt72_we_72_kk_hspa_18
LOCALE : en_US es_ES zh_CN zh_TW ru_RU pt_BR fr_FR de_DE tr_TR it_IT in_ID ms_MY vi_VN ar_EG th_TH pt_PT nl_NL el_GR hu_HU ro_RO cs_CZ my_MM ko_KR pl_PL es_US bg_BG hr_HR lv_LV lt_LT sk_SK uk_UA da_DK fi_FI nb_NO sv_SE en_GB zh_HK ja_JP sr_RS ca_ES et_EE sl_SI fa_IR hi_IN
Done!
Elapsed: 00:00:19
Reconnect Power/Cable!
رابط تنزيل الفلاشة
